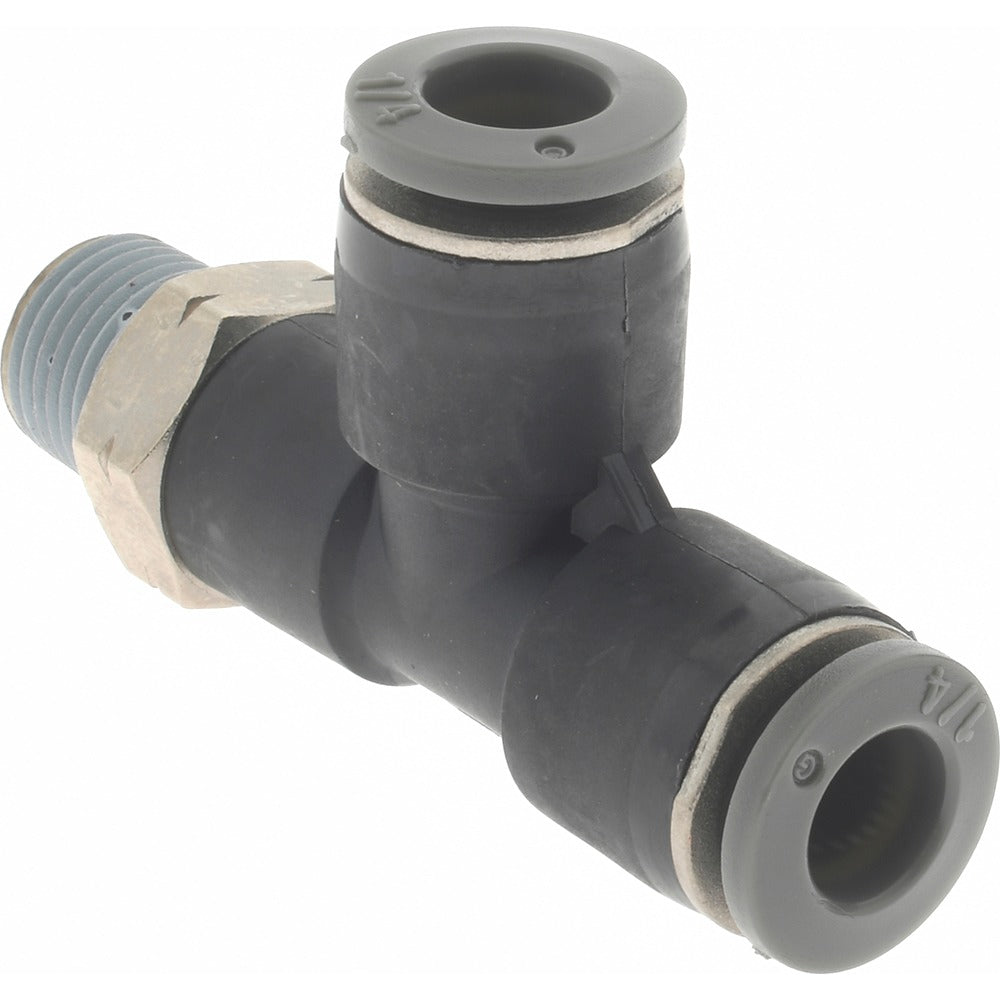

Norgren C24680418 Swivel Side Tee Ptc Fitting Brass

Product Description

The NORGREN C24680418 is a brass push-to-connect swivel side tee adapter designed for pneumatic and fluid tubing systems. It joins a 1/4-inch OD tube on two ports to a 1/8-inch NPTF male threaded side port, allowing a branch connection without cutting into existing lines. The swivel design simplifies alignment during installation. Rated to 150 psi maximum working pressure and a temperature range of 0 to 175 degrees F, this fitting is suitable for air, water, and compatible fluid lines in light industrial and trade plumbing applications. Nitrile O-rings provide a reliable seal at the tube connections.

This fitting is used in pneumatic control systems, compressed air distribution, and fluid transfer lines where a tee branch to a male NPT port is required. The push-to-connect end accepts 1/4-inch OD tubing without additional tools, while the 1/8-inch NPTF threaded side port connects to valves, gauges, or manifolds. Typical installers include HVAC technicians, plumbers, and industrial maintenance technicians working on control tubing, instrument air lines, or low-pressure fluid circuits.

Key Features

• Push-to-connect ends accept 1/4-inch OD tubing for tool-free tube insertion
• Swivel side tee design simplifies thread engagement and tube alignment
• 1/8-inch NPTF male threaded side port for leak-resistant tapered thread connections
• Brass body rated to 150 psi maximum working pressure
• Nitrile O-rings provide reliable sealing across the full temperature range
• Operating range of 0 to 175 degrees F suits most light industrial environments

Compatibility

Designed as an OEM-style push-to-connect tee fitting for systems using 1/4-inch OD tubing with a 1/8-inch NPTF male branch port connection.

Installation Notes

Installation should be performed by a qualified technician. Depressurize and lock out the system before removing or installing any fittings. Ensure tubing is cut cleanly and squarely and is fully seated into the push-to-connect port until the collet clicks. Verify thread engagement on the NPTF side port is snug and leak-free before returning the system to service.
