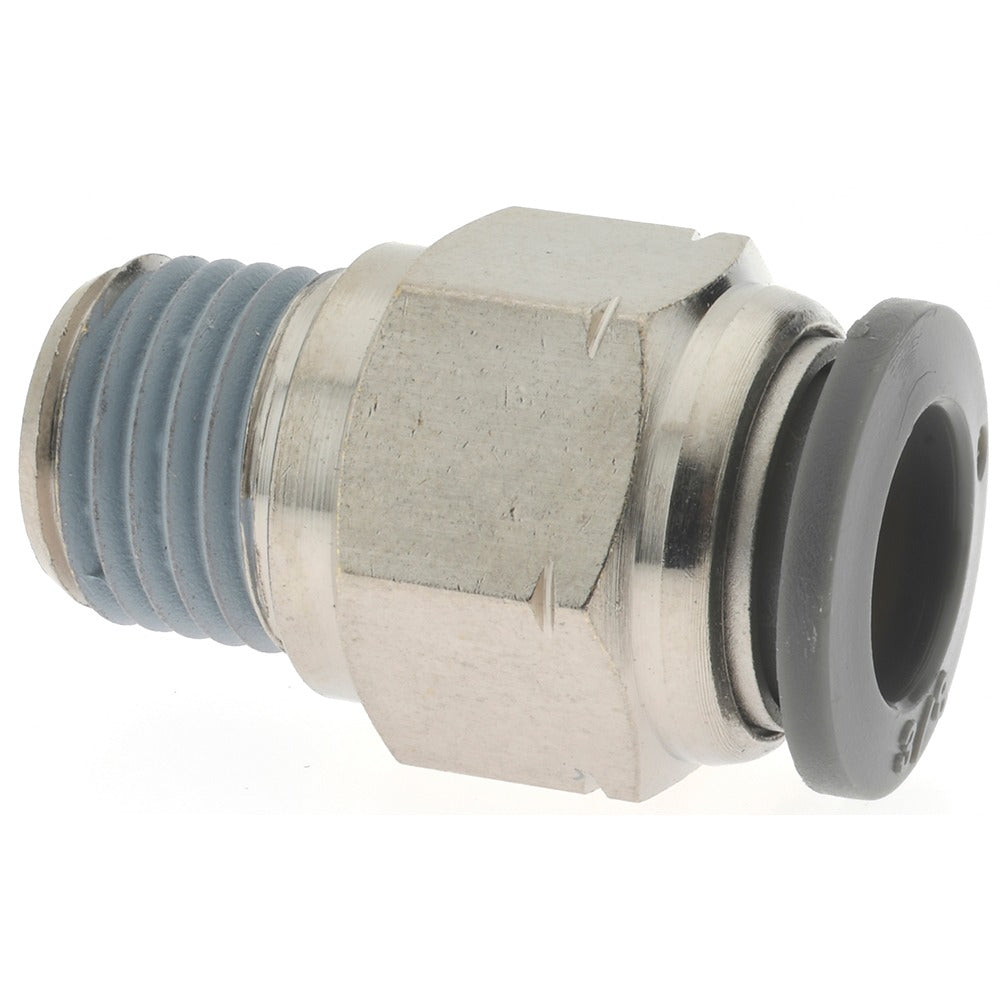

Norgren C24250628 Push-to-connect Straight Adapter Fitting

Product Description

The NORGREN C24250628 is a straight push-to-connect adapter fitting designed to transition between a 3/8 inch OD tube and a 1/4 inch male NPTF threaded port. Constructed from brass, this fitting handles a maximum working pressure of 150 psi and an operating temperature range of 0 degrees F to 175 degrees F. An integrated nitrile O-ring provides a reliable seal at the tube end. At 1.22 inches in overall length and 0.0816 pounds, this compact fitting is well suited for tight installations in pneumatic and fluid transfer lines. It is a single-piece unit with no assembly required beyond push-to-connect installation.

This fitting is used in pneumatic control systems, fluid transfer lines, and instrumentation plumbing where a compression-free, push-in tube connection to a male NPT port is required. Typical applications include HVAC pneumatic controls, compressed air distribution, and light industrial fluid systems. The brass construction and nitrile O-ring combination make it appropriate for air, water, and many compatible fluid media within its rated pressure and temperature limits. Package quantity is one fitting per unit.

Key Features

• Push-to-connect tube end for fast, tool-free tube insertion on the 3/8 inch OD side
• 1/4 inch NPTF male threaded end for secure tapered thread engagement
• Brass body rated to 150 psi maximum working pressure
• Nitrile O-ring seal for reliable tube retention and leak resistance
• Wide operating range from 0 degrees F to 175 degrees F
• Compact overall length of 1.22 inches suitable for space-constrained installations

Compatibility

Designed as a direct-connect adapter for 3/8 inch OD tubing to 1/4 inch male NPTF ported components in pneumatic and fluid transfer systems. UNSPSC Code 27121700.

Installation Notes

This fitting is typically installed by plumbers, HVAC technicians, or instrumentation mechanics working on pneumatic or fluid control systems. Depressurize and isolate the system completely before removing or installing any fittings. The NPTF male thread should be engaged into a properly tapped female port and tightened to hand-tight plus firm wrench engagement per standard practice; do not overtighten brass fittings. Insert the OD tube fully into the push-to-connect end until it seats, and verify retention before repressurizing the system.
