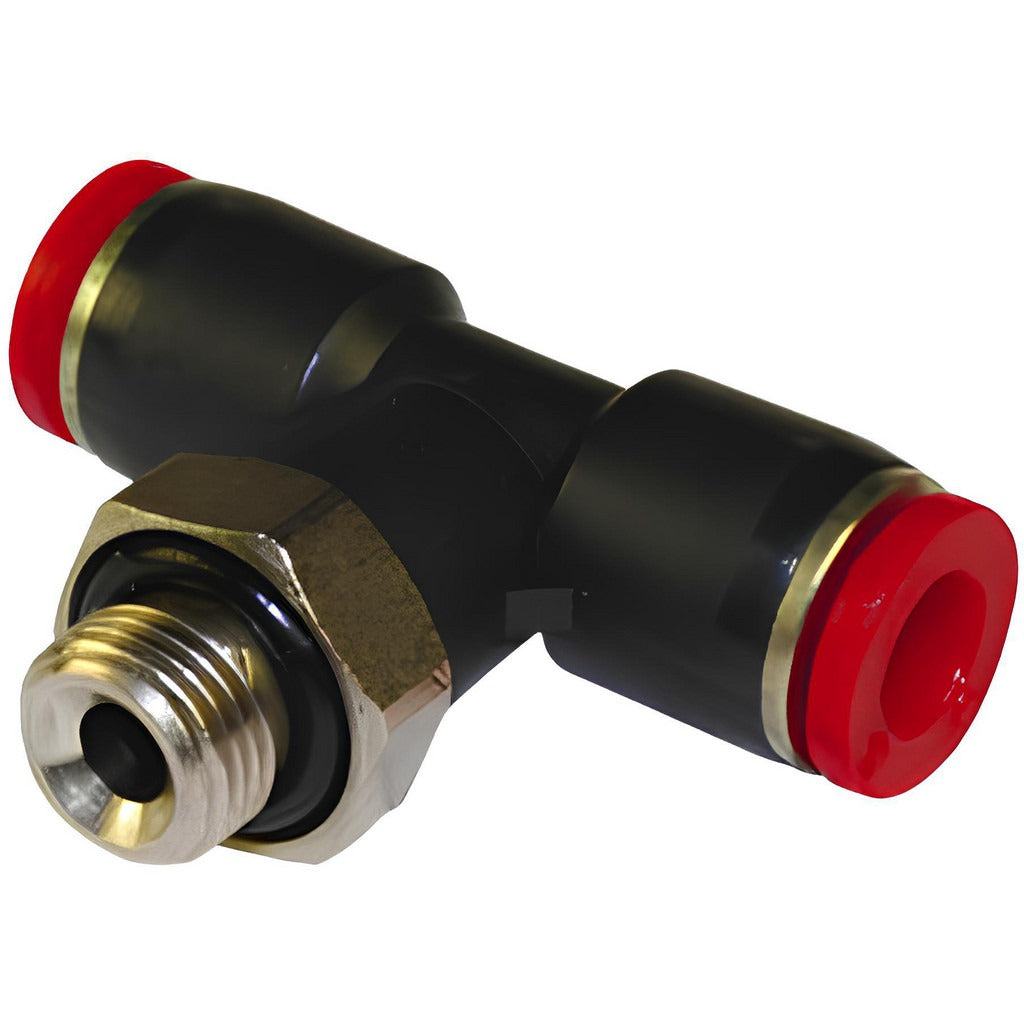

Norgren C02670828 Push-to-connect Male Bspp Fitting Brass

Product Description

The NORGREN C02670828 is a push-to-connect tube fitting with a male BSPP thread configuration, designed for use in pneumatic and fluid-handling systems. It features a tube-to-male-to-tube-to-male BSPP connection type, allowing quick, tool-free tube insertion on both ends with a threaded male BSPP port in the center. Constructed from brass, this fitting handles a maximum working pressure of 150 psi and operates across a temperature range of 0 to 175 degrees F. The nitrile o-ring provides reliable sealing under general-purpose service conditions. Licensed plumbing and mechanical contractors, as well as industrial maintenance technicians, are the typical installers.

This fitting is suited for general-purpose pneumatic and fluid-transfer applications in both light industrial and commercial environments. The 8 mm tube outside diameter and BSPP thread type make it appropriate for systems using metric tubing with British Standard Parallel Pipe threaded ports. It is commonly installed in compressed air distribution lines, pneumatic control circuits, and fluid-handling assemblies where quick-connect tube terminations are required alongside a threaded male interface.

Key Features

• Push-to-connect on both tube ends for tool-free, fast installation
• Male BSPP threaded center port for direct connection to BSPP-ported valves, manifolds, or fittings
• Brass construction for corrosion resistance in pneumatic and general fluid service
• Nitrile o-ring seal rated for 0 to 175 degrees F operating range
• Rated to 150 psi maximum working pressure
• Compatible with 8 mm outside diameter tubing

Compatibility

Designed for general-purpose pneumatic and fluid-handling systems requiring a push-to-connect tube fitting with a male BSPP threaded port and 8 mm outside diameter tubing.

Installation Notes

Depressurize and isolate the system completely before removing or installing any fittings. Ensure tubing ends are cut cleanly and squarely to achieve a proper push-to-connect seal. Verify that the mating port uses BSPP thread form, as BSPP and NPT threads are not interchangeable. Consult applicable piping codes and the equipment manufacturer's documentation for system-specific pressure and temperature requirements.
