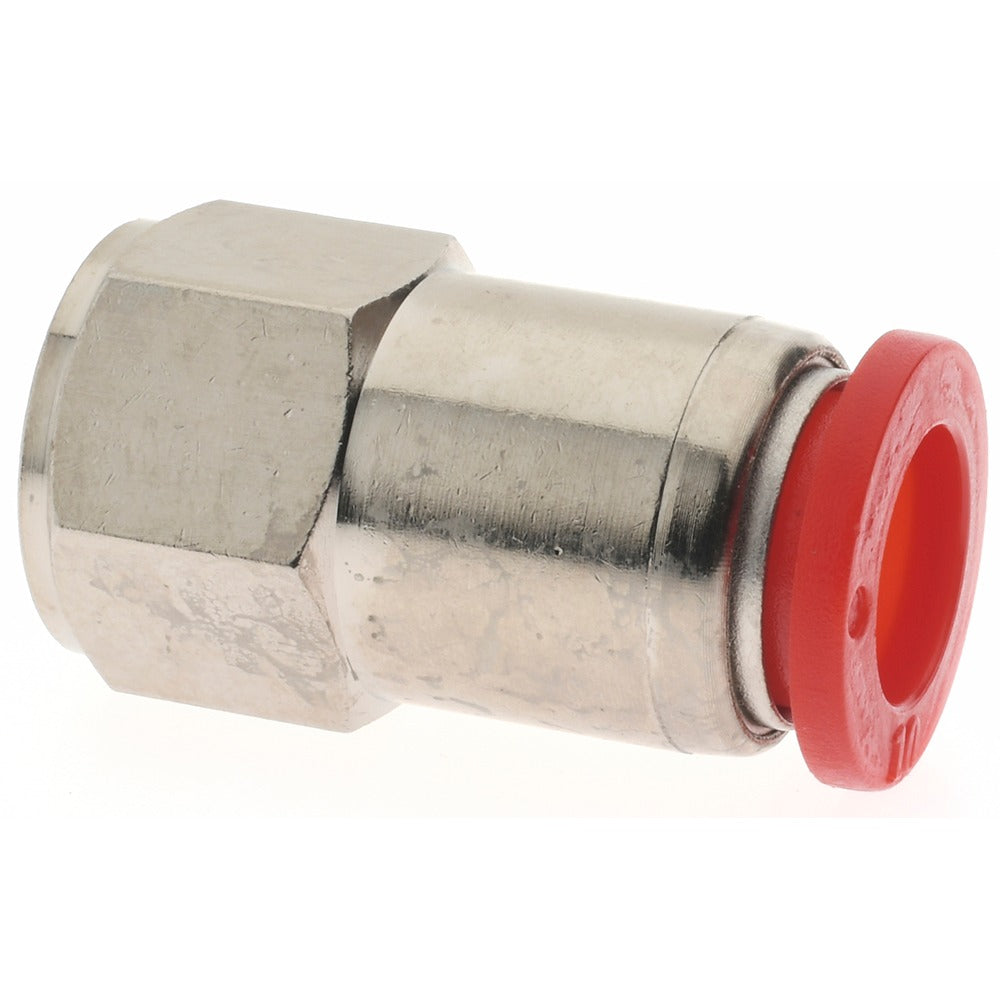

Norgren C02261028 Push-to-connect Female Adapter Bspp

Product Description

The NORGREN C02261028 is a straight push-to-connect female adapter tube fitting designed for pneumatic and fluid plumbing lines. It connects tubing with a 10mm outside diameter to a female BSPP-threaded port in a single inline configuration. The fitting body is brass, rated to 150 psi maximum working pressure, and handles temperatures from 0 degrees F to 175 degrees F. An integrated nitrile O-ring seals the tube-side connection. Plumbers, pipefitters, and pneumatic system technicians use this fitting where a quick-connect tube termination into a female BSPP port is required without additional tooling on the tube end.

This fitting is suited for residential and light commercial pneumatic or fluid distribution systems where BSPP-threaded ports are present. The push-to-connect design allows rapid field assembly and removal during service or system modification. At 31.5mm overall length, it fits in tight panel or manifold installations. The nitrile O-ring makes it appropriate for air, water, and many common hydraulic fluids within its rated pressure and temperature envelope.

Key Features

• Push-to-connect tube entry accepts 10mm OD tubing without additional fittings or clamps
• Straight female adapter configuration for direct BSPP port connections
• Brass body construction for corrosion resistance in air and water service
• 150 psi maximum working pressure rating
• Nitrile O-ring included for reliable tube-side sealing
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed for use with 10mm OD tubing on push-to-connect systems utilizing female BSPP-threaded ports. Suitable for pneumatic and general fluid service applications within the stated pressure and temperature ratings.

Installation Notes

Installation should be performed by a qualified plumber, pipefitter, or pneumatic technician. Depressurize and isolate the line completely before removing or installing any fitting. Verify that tubing outside diameter is exactly 10mm and that the mating port thread is BSPP before installation. Do not exceed the 150 psi working pressure or 175 degrees F temperature limit in service.
