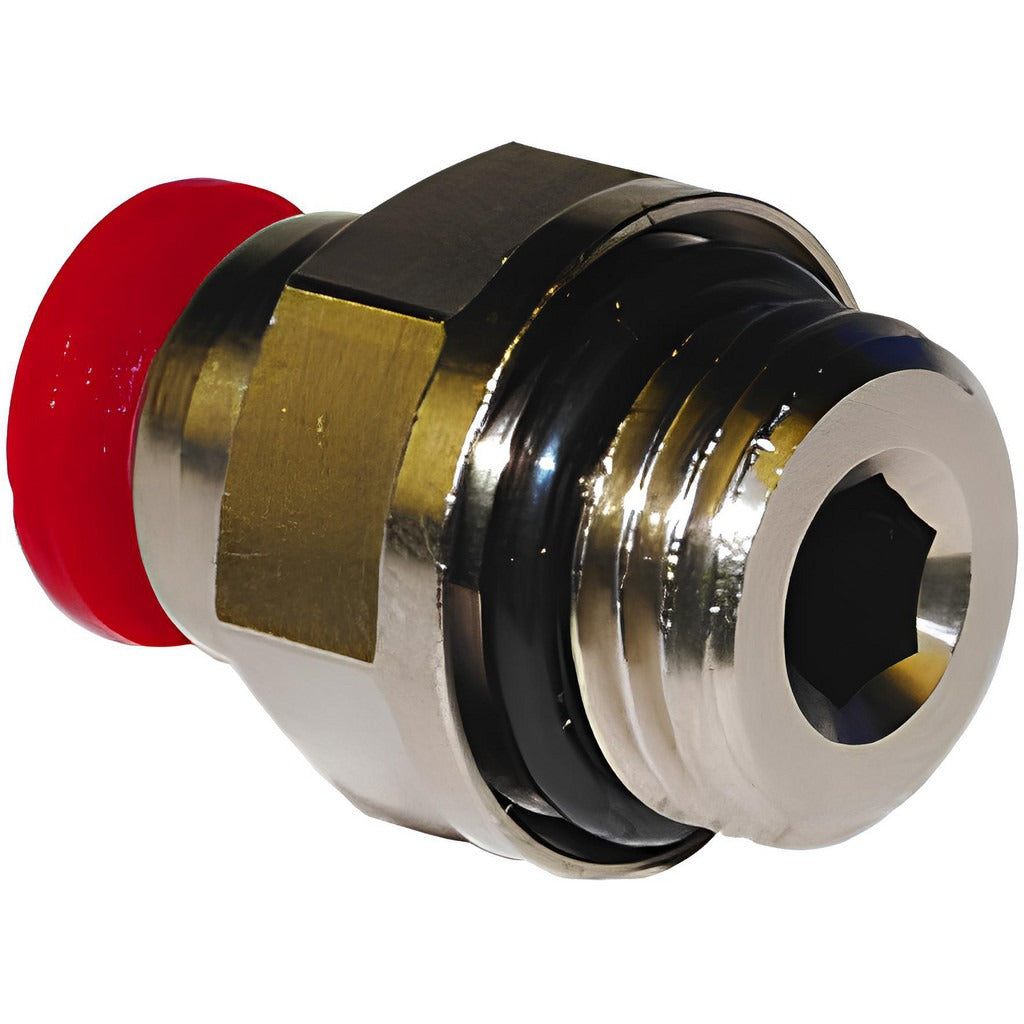

Norgren C02251018 Push-to-connect Adapter 1/8 Bspp

Product Description

The NORGREN C02251018 is a straight push-to-connect tube fitting adapter designed for tube-to-male BSPP connections in general-purpose pneumatic and fluid systems. Constructed from brass, this adapter accepts 10mm outside diameter tubing on the push-to-connect end and threads into a 1/8 inch BSPP male port on the opposing end. The nitrile O-ring ensures a reliable seal across a working pressure range up to 150 psi and temperatures from 0 to 175 degrees F. It is compact in overall length at 29.5 mm and weighs approximately 0.033 pounds, making it well suited for space-constrained panel or manifold installations. Plumbers, pneumatic system technicians, and industrial maintenance professionals install this fitting as part of tubing runs in process and automation equipment.

This adapter is intended for general-purpose pneumatic and fluid transfer applications where a push-to-connect tube must terminate at a male BSPP threaded port. It is commonly installed in compressed air distribution, light hydraulic circuits, and instrumentation tubing systems where quick, tool-free tube insertion is required on one end and a threaded port connection is required on the other. Its brass construction and nitrile O-ring make it suitable for use with air, water, and many compatible fluid media within its rated pressure and temperature limits.

Key Features

• Push-to-connect tube end accepts 10mm outside diameter tubing without additional tools
• 1/8 inch BSPP male thread on the opposing end for direct port installation
• Brass construction offers corrosion resistance in general-purpose fluid and air systems
• Nitrile O-ring provides a dependable seal rated to 150 psi maximum working pressure
• Rated for service from 0 to 175 degrees F, covering most general-purpose indoor environments
• Compact form factor at 29.5 mm overall length suits tight installation spaces

Compatibility

Designed for general-purpose pneumatic and fluid system applications requiring a 10mm OD push-to-connect tube connection to a 1/8 inch BSPP male threaded port.

Installation Notes

This fitting is typically installed by plumbers, pipefitters, or pneumatic system technicians. Depressurize and isolate the system fully before removing or installing any fittings. Ensure the BSPP threads are clean and undamaged before threading in; BSPP is a parallel thread type and requires an O-ring or bonded seal for leak-free sealing rather than thread sealant tape alone. When inserting tubing into the push-to-connect end, cut tubing squarely and insert fully until it seats against the internal stop before pressurizing the circuit.
