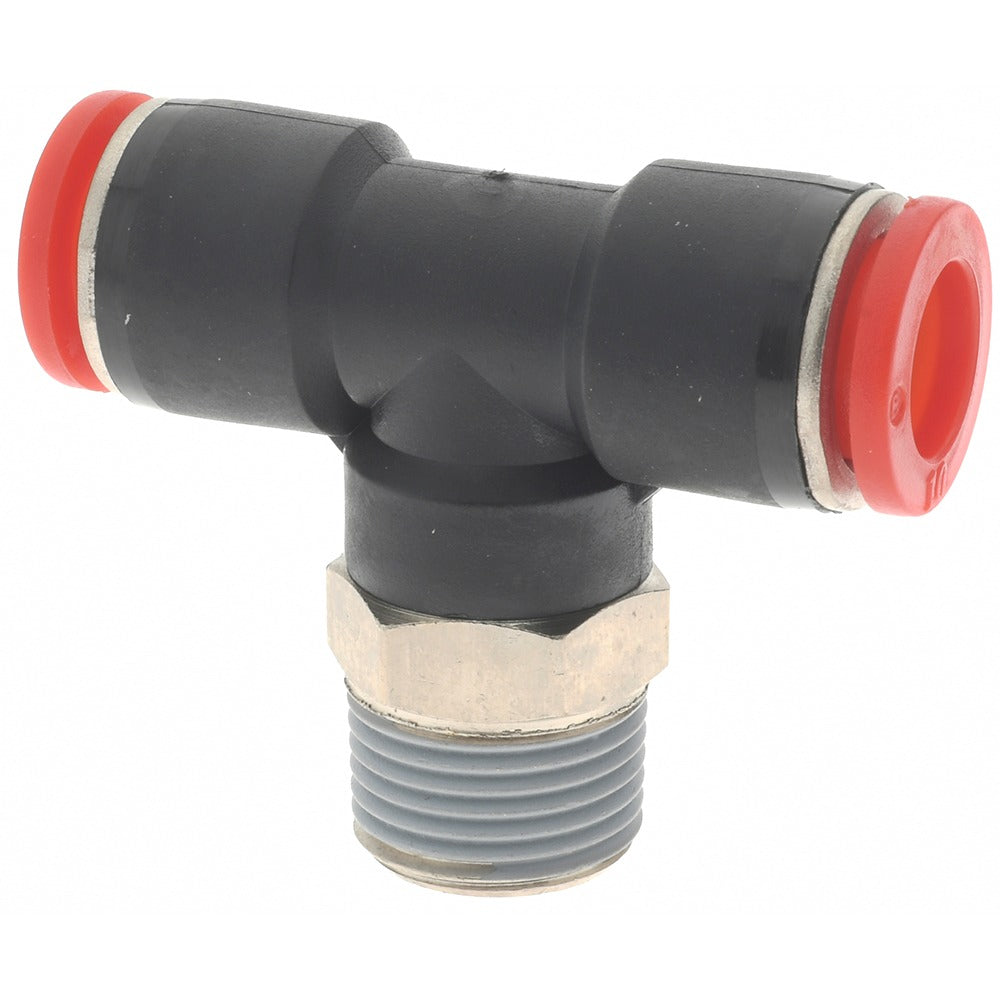

Norgren C01671038 Push-to-connect Bspt Tube Fitting

Product Description

The NORGREN C01671038 is a brass push-to-connect tube fitting with a tube-to-male BSPT connection configuration. It accepts a 10 mm outside diameter tube on each end and terminates to a male BSPT threaded port, making it a practical inline connector for pneumatic and fluid conveyance lines. Rated to 150 psi maximum working pressure, this fitting handles a wide service temperature range from 0 degrees F to 175 degrees F. The body is machined brass for corrosion resistance and durability in compressed air, water, and compatible fluid systems. Licensed plumbers, pipefitters, and pneumatic system technicians are the typical installers.

This fitting is suited for industrial and commercial pneumatic plumbing, instrumentation lines, and fluid distribution systems where a push-to-connect interface is needed alongside a BSPT threaded port. The BSPT thread form is common in metric-standard and internationally sourced equipment and control panels. The nitrile O-ring seal maintains a leak-free connection across the rated pressure and temperature envelope, making it a reliable choice in light industrial, process, and OEM equipment applications.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion for 10 mm OD tubing
• Male BSPT threaded port for integration with metric-standard valves, manifolds, and equipment
• Brass construction resists corrosion in compressed air and compatible fluid service
• Nitrile O-ring seal provides reliable seating across the full rated temperature range
• Rated to 150 psi maximum working pressure
• Operating temperature range: 0 degrees F to 175 degrees F

Compatibility

Designed as an OEM-style replacement or inline component for pneumatic and fluid systems that use 10 mm OD tubing and BSPT male threaded ports rated to 150 psi or less.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified pneumatic technician. Before servicing, depressurize the line completely and verify system pressure does not exceed the 150 psi rating of this fitting. Ensure the tube end is cut square and deburred before insertion to achieve a proper push-to-connect seal. Confirm thread compatibility with the mating port, as BSPT is a parallel thread standard and is not interchangeable with NPT.
