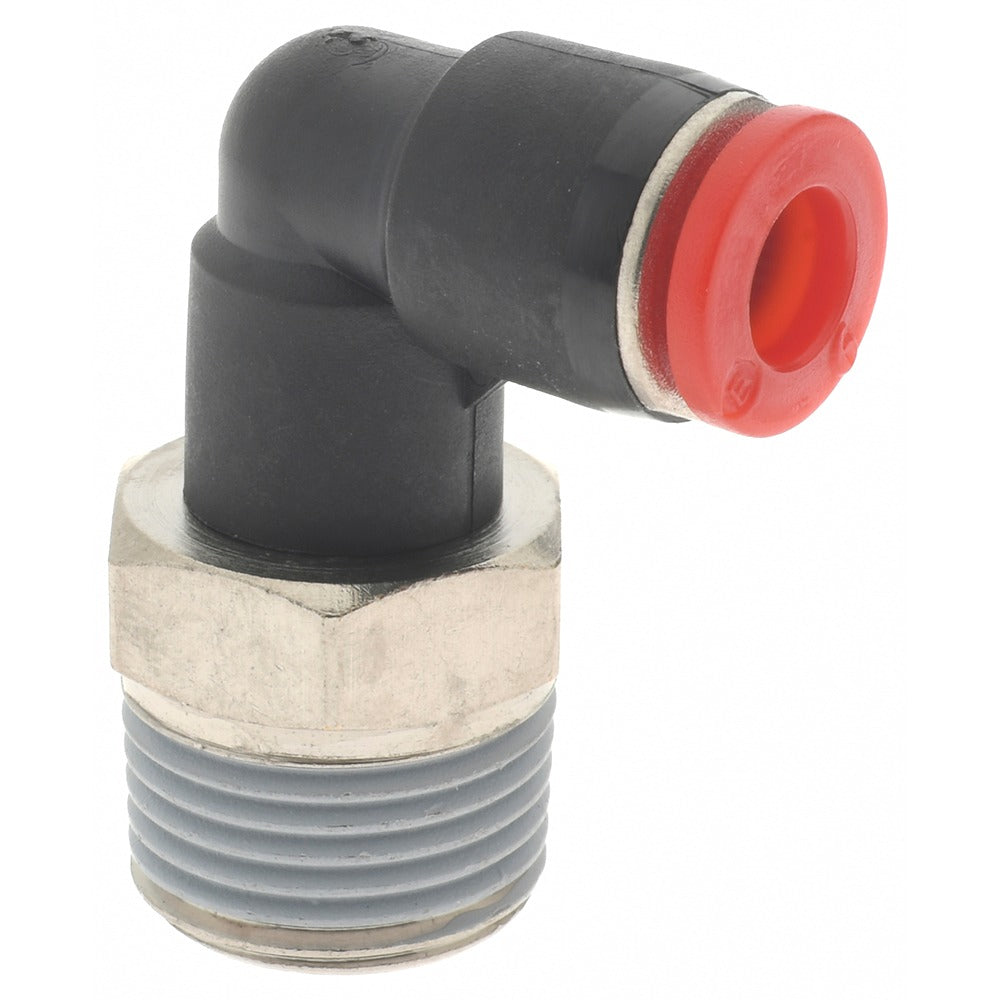

Norgren C01470638 Push-to-connect Tube Fitting Bspt

Product Description

The NORGREN C01470638 is a push-to-connect tube fitting with male BSPT thread ends, designed for use in pneumatic and fluid conveyance systems. The fitting connects tubing on both sides with a push-to-connect mechanism and terminates with a male BSPT threaded connection, allowing fast, tool-free tube insertion into a ported body or manifold. Constructed from brass, it handles working pressures up to 150 psi and operates across a temperature range of 0 degrees F to 175 degrees F. An internal nitrile O-ring provides the sealing element. This fitting is sized for 6 mm outside diameter tubing and is sold as an individual piece.

This fitting suits residential and light commercial pneumatic control systems, compressed air lines, and instrumentation plumbing where BSPT thread standards are specified. Typical applications include air preparation equipment, valve manifolds, and pneumatic actuator plumbing. It is commonly installed by industrial maintenance technicians, HVAC controls specialists, and plumbing professionals working with metric tubing and British-standard threaded ports. The brass construction makes it appropriate for dry air, inert gas, and compatible fluid service within its rated pressure and temperature limits.

Key Features

• Push-to-connect design allows tool-free tube insertion for faster assembly
• Male BSPT thread end for direct connection to British-standard threaded ports or manifolds
• Brass body construction for corrosion resistance in air and compatible fluid service
• Rated to 150 psi maximum working pressure
• Operating temperature range of 0 degrees F to 175 degrees F
• Nitrile O-ring seal for reliable pneumatic and low-pressure fluid containment

Compatibility

Designed for use with 6 mm outside diameter tubing and BSPT-threaded ports. Suitable as an OEM-style or replacement fitting in pneumatic control and compressed air systems specifying BSPT thread forms and metric tube sizes.

Installation Notes

Depressurize and isolate the system completely before removing or installing any fittings. Ensure tubing is cut cleanly and squarely, with no burrs, before inserting into the push-to-connect port. Thread engagement should be made hand-tight first, then tightened with an appropriate wrench to the fitting body flats only — never apply torque to the tube collet. Verify the tube is fully seated and the system is leak-free before returning to service.
