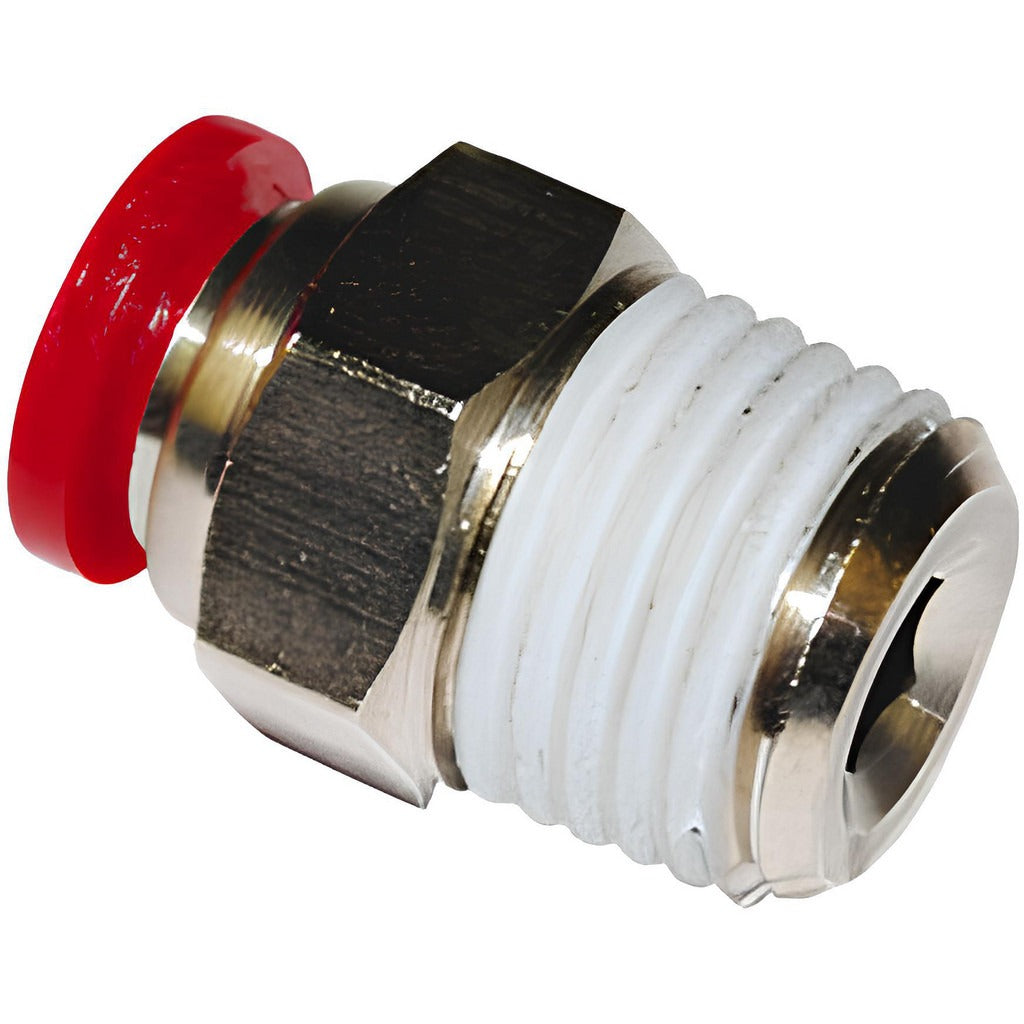

Norgren C01250828 Push-to-connect Male Connector Fitting

Product Description

The NORGREN C01250828 is a straight push-to-connect male connector tube fitting designed for use in pneumatic and fluid handling lines. Constructed from brass, this fitting accepts an 8mm outside diameter tube on the push-to-connect end and terminates in a 1/4 inch BSPT male thread on the opposite end. It is rated for a maximum working pressure of 150 psi and operates across a temperature range of 0 to 175 degrees F. The nitrile O-ring provides a reliable seal in general-purpose compressed air and compatible fluid applications. Installation is straightforward, making this fitting a practical choice for maintenance technicians and plumbing or pneumatic system assemblers.

This fitting is suited for general-purpose pneumatic and fluid transfer applications across light industrial and commercial environments. It is commonly used to connect tubing runs to threaded male ports on valves, manifolds, cylinders, and similar equipment using BSPT thread standards. The push-to-connect design allows for quick tube insertion without additional tools, reducing assembly time in production or service settings.

Key Features

• Push-to-connect design accepts 8mm outside diameter tubing without additional tools
• 1/4 inch BSPT male thread for connection to standard BSPT-ported components
• Brass construction for durability in pneumatic and compatible fluid service
• Nitrile O-ring seal for reliable performance in general-purpose air and fluid lines
• Rated to 150 psi maximum working pressure
• Operating temperature range of 0 to 175 degrees F

Compatibility

Designed for general-purpose pneumatic and fluid handling systems that use 8mm outside diameter tubing and 1/4 inch BSPT male-threaded ports. Suitable for use with valves, manifolds, cylinders, and similar components where BSPT thread connections are specified.

Installation Notes

Installation is performed by trained pneumatic or plumbing technicians. Before servicing any pneumatic line, depressurize the system completely and isolate the supply. Ensure the tubing end is cut cleanly and squarely, and that the tube outside diameter matches the 8mm fitting specification before insertion. Thread connections should be made with appropriate thread sealant compatible with BSPT standards and the media being conveyed.
