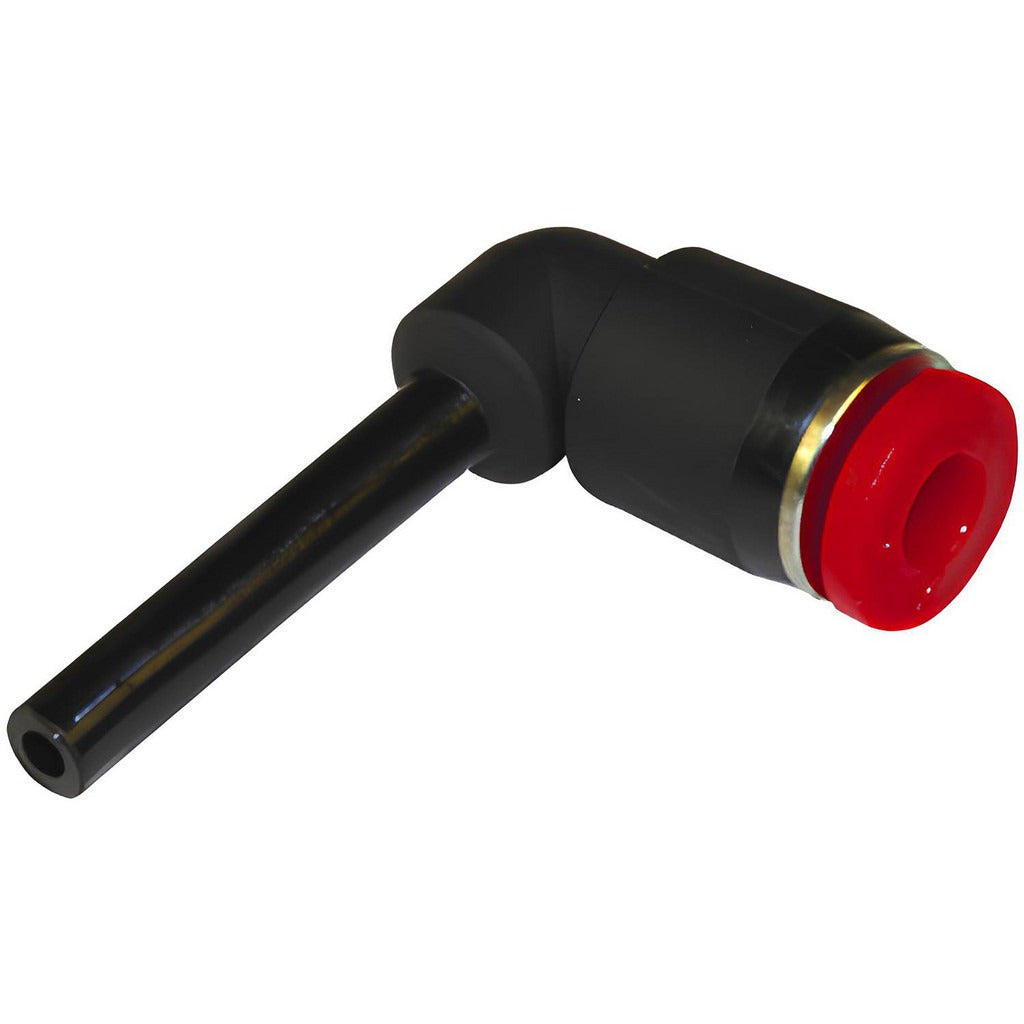

Norgren C00430600 Stem Elbow Tube Fitting 150 Psi

Product Description

The NORGREN C00430600 is a brass push-to-connect stem elbow tube fitting designed for general-purpose pneumatic and fluid-handling applications. It creates a 90-degree change of direction between a tube and a threaded or barbed stem, allowing technicians to route tubing efficiently within tight assemblies. The fitting accepts a 6mm outside-diameter tube on the push-to-connect end and a 6mm outside-diameter stem on the opposing end. It is rated to 150 psi maximum working pressure and operates across a temperature range of 0 to 175 degrees F. A nitrile O-ring provides the internal seal at the tube connection point.

This stem elbow is suited for general-purpose plumbing, pneumatic control lines, and fluid-transfer tubing runs in both light commercial and industrial settings. Typical install scenarios include instrument tubing connections, compressed-air distribution, and equipment panel plumbing where a compact 90-degree transition is required. It is sold individually and is appropriate for any application requiring a reliable, tool-free push-to-connect tube termination at a stem interface.

Key Features

• Push-to-connect design allows tool-free tube insertion and secure retention
• 90-degree stem elbow geometry for direction changes in confined routing
• Brass construction for durability and corrosion resistance in general-purpose service
• Rated to 150 psi maximum working pressure
• Nitrile O-ring seal compatible with air and many common fluids
• Operates from 0 to 175 degrees F

Compatibility

Designed for general-purpose use with 6mm outside-diameter tubing in pneumatic and fluid-handling systems where a push-to-connect tube-to-stem elbow connection is required.

Installation Notes

Installation is performed by plumbers, pipefitters, or pneumatic system technicians. Before servicing any line, depressurize the system completely and verify zero pressure before handling the fitting. Ensure tube ends are cut square and deburred before insertion into the push-to-connect collet to achieve a proper seal. Follow applicable codes such as the IPC or relevant pneumatic system standards for pressure-rated fittings in your jurisdiction.
