Norgren B07-234-A1LA Frl Filter Regulator 1/4 Npt

Product Description

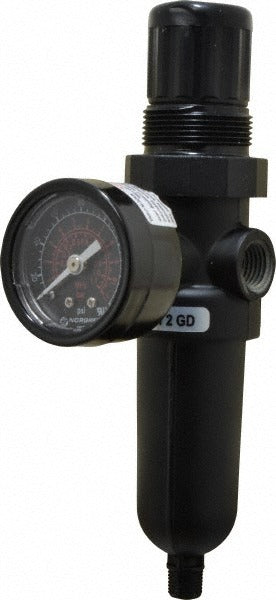

The NORGREN B07-234-A1LA is a miniature FRL combination unit configured as a single-piece filter/regulator with an integrated pressure gauge. Designed for compressed air systems, it filters particulates down to 5 microns while allowing the technician to regulate downstream pressure in one compact assembly. The zinc body and metal bowl construction handle supply pressures up to 250 psi, and the automatic drain removes accumulated condensate without manual intervention. At 14 SCFM flow capacity, it suits light industrial and pneumatic tool applications. Pneumatic system technicians and maintenance mechanics install this unit inline on compressed air supply lines.

This unit is suited for residential and light commercial pneumatic systems where space is limited and a combined filter/regulator function is preferred over separate components. The miniature body profile fits tight panel or inline installations. The 1/4 NPT port size is standard for small-bore compressed air distribution lines, and the included pressure gauge allows immediate visual verification of regulated outlet pressure at the point of use.

Key Features

• Single-piece filter/regulator design combines two functions in one compact miniature body
• 5-micron filtration rating removes fine particulates from compressed air supply
• Automatic drain eliminates manual condensate removal
• Maximum supply pressure of 250 psi suits most industrial compressed air systems
• Integrated pressure gauge included for immediate downstream pressure reading
• Metal bowl construction for durability in demanding service environments

Compatibility

Designed as an OEM-style replacement or new-installation filter/regulator for compressed air systems using 1/4 NPT ported components in the NORGREN B07 series.

Installation Notes

Installation should be performed by a qualified pneumatic systems technician or millwright. Depressurize and lock out the compressed air supply line before installation or service. Use appropriate thread sealant rated for compressed air on NPT connections and verify all fittings are leak-free before returning the system to pressure. Mount the unit upright to allow the automatic drain to function correctly.
