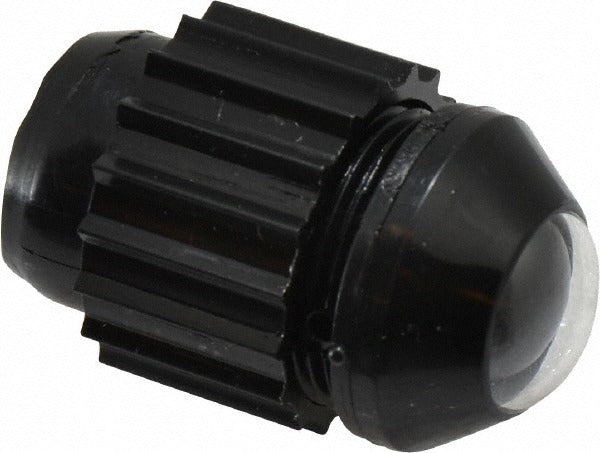

Norgren 5VS-102-000 Rotowink Pressure Indicator 15 Psi

Product Description

The NORGREN 5VS-102-000 is a Rotowink visual pressure indicator designed to provide a quick, at-a-glance confirmation of system pressurization status. The indicator features a bottom-mount 10-32 Female UNF port and displays actuation state through a color change: black when unactuated and green when actuated. It handles a maximum inlet pressure of 15 psi and is rated for environments up to 150 degrees F. Pneumatic technicians and fluid power specialists install this type of indicator inline or at manifold ports to verify pressure without additional gauging equipment.

This indicator is suited for light industrial and automation pneumatic circuits where a low-cost, no-read visual confirmation of pressure presence is needed. The bottom-port configuration allows for clean panel or manifold mounting without exposed fittings projecting laterally. Its compact form factor and standard 10-32 UNF thread make it a straightforward fit in compressed air and inert gas control systems operating within its rated pressure range.

Key Features

• Rotowink visual actuation: black unactuated, green actuated for fast status confirmation
• 10-32 Female UNF bottom port for panel or manifold mounting
• Maximum inlet pressure of 15 psi for light pneumatic circuit applications
• Rated to 150 degrees F maximum operating temperature
• Compact indicator eliminates need for a dedicated pressure gauge at monitored points

Compatibility

Designed as an OEM-style replacement or direct-fit addition for pneumatic control circuits and manifold assemblies using 10-32 Female UNF bottom-port connections rated to 15 psi.

Installation Notes

Installation is performed by pneumatic or fluid power technicians. Depressurize and lock out the pneumatic circuit before removing or installing the indicator. Apply appropriate thread sealant compatible with the media being used and do not overtighten the 10-32 UNF fitting. Verify system operating pressure does not exceed the 15 psi maximum rated inlet pressure before returning the circuit to service.
