Norgren 124450118 Male Elbow Fitting 1/8 in Od 1/8 in Nptf

Product Description

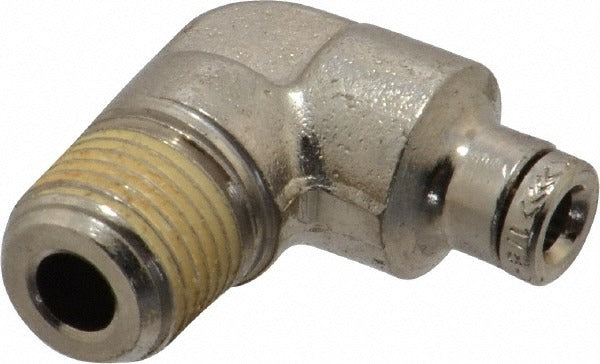

The NORGREN 124450118 is a Pneufit push-to-connect fixed male elbow fitting designed for pneumatic tube and pipe connections in compressed air and fluid control systems. It connects tubing with a 1/8 inch outside diameter to a 1/8 inch NPTF male threaded port, routing lines at a fixed angle without the need for additional adapters. Constructed from nickel-plated brass, it handles a maximum working pressure of 260 psi and operates across a temperature range of -4 degrees F to 175 degrees F. The push-to-connect design allows fast, tool-free tube insertion. HVAC technicians, pneumatic systems technicians, and plumbers install this type of fitting in control panels, actuator lines, and instrumentation tubing runs.

This fitting suits residential and commercial pneumatic control applications where compact, reliable tube-to-male-pipe transitions are required. Typical installations include pneumatic actuator supply lines, control valve pilots, and instrumentation tubing in HVAC, process control, and fluid handling equipment. The elbow orientation helps manage tight routing in enclosures and equipment panels where straight fittings cannot make the turn without stressing the tubing.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and release
• Fixed male elbow body routes tubing at a set angle for tight-space installations
• Nickel-plated brass construction resists corrosion in compressed air and fluid service
• Rated to 260 psi maximum working pressure
• Compatible with 1/8 inch OD tubing and 1/8 inch NPTF male threaded ports
• Vacuum-rated to 29.5 in-Hg for vacuum line applications

Compatibility

Designed as an OEM-style push-to-connect fitting for pneumatic and fluid control systems using 1/8 inch OD tubing and 1/8 inch NPTF male threaded connections.

Installation Notes

Installation is performed by pneumatic systems technicians or licensed plumbers working on compressed air or fluid control lines. Depressurize and isolate the system fully before removing or installing any fittings. Thread the male NPTF end into the port by hand first, then tighten with an appropriate wrench to the torque specification listed by the equipment manufacturer. Insert tubing straight and fully into the push-to-connect end until it seats; to release, depress the collet ring and withdraw the tube.
