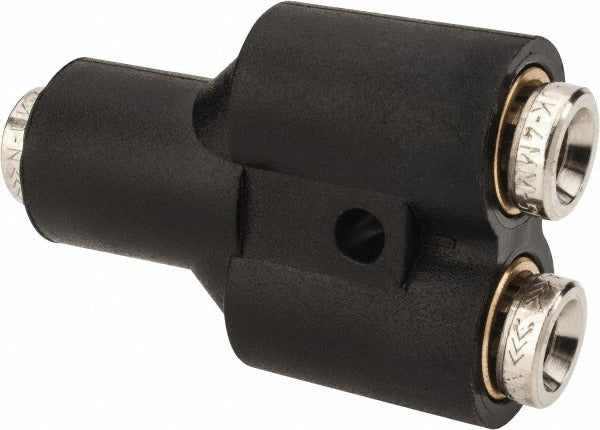

Norgren 120820200 Union Y Fitting 5/32 Inch Od

Product Description

The NORGREN 120820200 is a push-to-connect parallel union Y tube fitting from the Pneufit line, designed for tube-to-tube connections in pneumatic systems. This fitting accepts tubing with a 5/32 inch outside diameter and is constructed from thermoplastic, making it lightweight and resistant to corrosion. Rated to 260 psi, it is suited for compressed air and general pneumatic circuit work. The push-to-connect design allows for quick, tool-free tube insertion and secure retention without ferrules or additional fittings. It is typically installed by pneumatic technicians, automation specialists, and HVAC controls technicians working with low-voltage pneumatic control circuits or compressed air distribution.

This fitting is used in pneumatic tubing runs where a single line must branch into two parallel paths while maintaining a straight flow axis. The union Y configuration makes it useful for both new installations and field modifications to existing pneumatic circuits. Common applications include instrument air systems, pneumatic actuator supply lines, and control panel pneumatic distribution. The compact thermoplastic body keeps weight and space requirements minimal in tight enclosures or control cabinets.

Key Features

• Push-to-connect design allows fast, tool-free tube insertion and removal
• Parallel union Y configuration branches one line into two paths in a compact form factor
• Rated to 260 psi for use in compressed air and general pneumatic service
• Thermoplastic construction provides corrosion resistance and light weight
• Accepts 5/32 inch OD tubing on all ports
• Pneufit series fitting with consistent dimensional standards across the product line

Compatibility

Designed as an OEM-style replacement or addition for pneumatic systems using 5/32 inch OD tubing with push-to-connect fittings.

Installation Notes

Depressurize and isolate the pneumatic circuit completely before removing or installing any fittings. Ensure tubing ends are cut square and free of burrs before insertion to achieve a proper seal. Verify that the tubing outside diameter matches the 5/32 inch specification of this fitting before assembly. Pneumatic fitting installations in commercial or industrial settings should comply with applicable compressed air system codes and facility safety procedures.
