Norgren 10A510628 Elbow Banjo Tube Fitting Bspp

Product Description

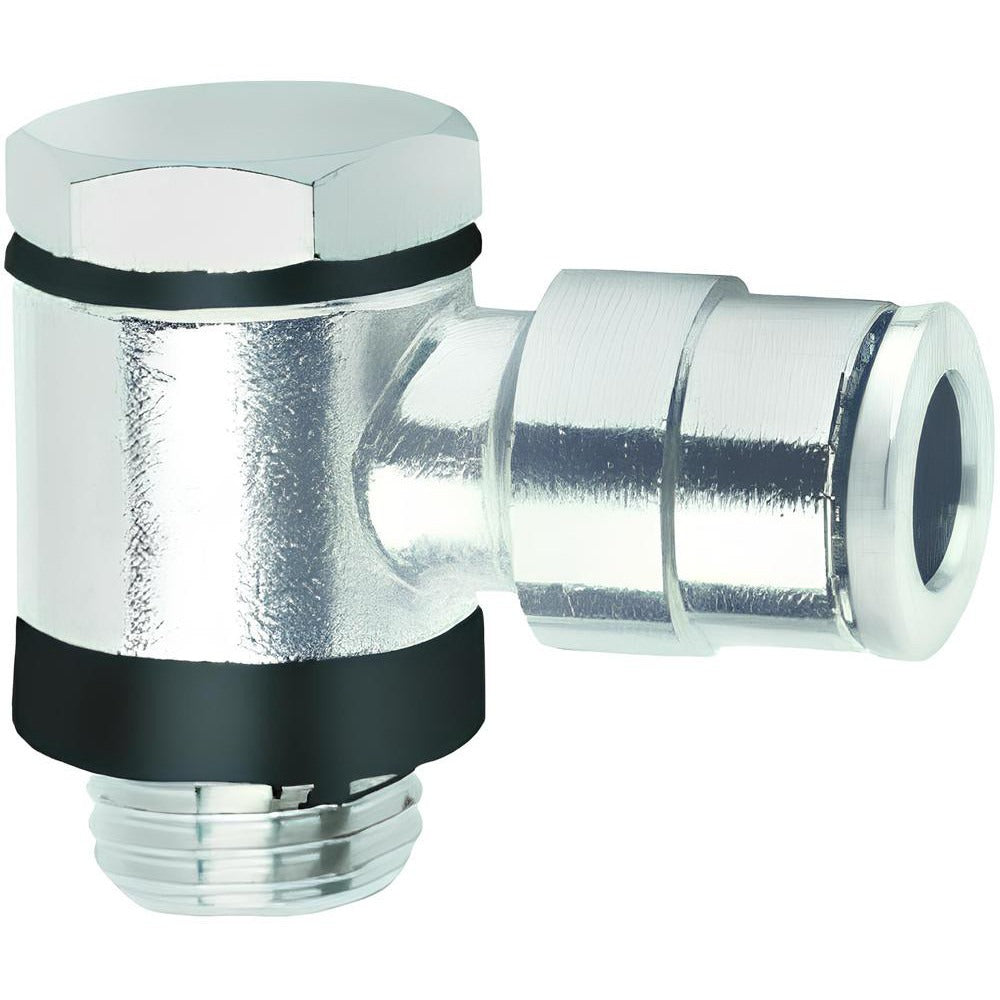

The NORGREN 10A510628 is a push-to-connect elbow banjo tube fitting designed for general-purpose pneumatic and fluid line applications. It features a tube-to-male-to-tube-to-male BSPP connection configuration in an elbow banjo geometry, allowing branched or angled tube routing where straight fittings cannot be used. Constructed from nickel-plated brass, this fitting handles working pressures up to 260 psi and operates across a temperature range of 0 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal under typical compressed air and fluid media conditions. Plumbers, pipefitters, and pneumatic system technicians install this fitting in both production and maintenance scenarios.

This fitting is suited for general-purpose pneumatic tubing systems, compressed air distribution lines, and fluid transfer assemblies where an angled banjo-style connection is required. The push-to-connect mechanism accepts 6 mm outside diameter tubing and terminates to a 1/4 inch BSPP male thread, making it a practical choice for equipment panels, manifolds, and machine-mounted valve bodies that use BSPP porting. It is commonly installed in light industrial, manufacturing, and process equipment environments.

Key Features

• Push-to-connect design for fast, tool-free tube insertion and secure retention
• Elbow banjo configuration allows branched and angled routing in tight spaces
• Nickel-plated brass construction provides corrosion resistance in typical pneumatic environments
• Rated to 260 psi maximum working pressure
• Nitrile O-ring seal compatible with air and common fluid media
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed for general-purpose use with 6 mm outside diameter push-to-connect tubing and 1/4 inch BSPP male-threaded ports in pneumatic and fluid transfer systems.

Installation Notes

Installation is performed by plumbers, pipefitters, or pneumatic system technicians familiar with push-to-connect fittings and BSPP threaded connections. Depressurize and isolate the system completely before removing or installing any fitting. BSPP threads are parallel and require an O-ring or bonded seal at the port face rather than thread sealant tape. Verify tube cut is square and burr-free before insertion to ensure a proper push-to-connect seal.
