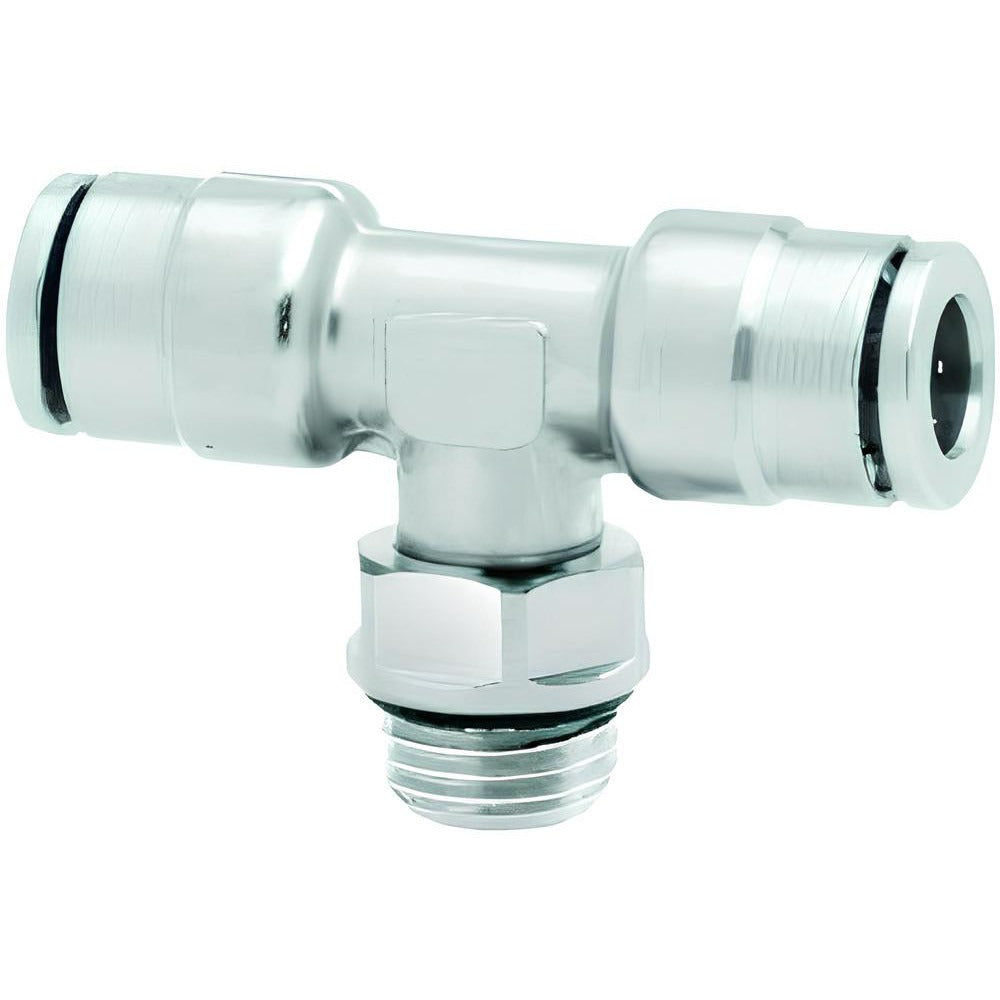

Norgren 102670618 Swivel Tee Bspp Tube Fitting

Product Description

The NORGREN 102670618 is a push-to-connect swivel tee adapter designed for pneumatic and fluid-handling tube assemblies requiring a branch connection at a male BSPP threaded port. Constructed from nickel-plated brass with a nitrile O-ring, it accepts tube on two ports and connects to a male BSPP thread on the third, allowing the tube side to swivel for easier routing. The fitting is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. Plumbers, HVAC technicians, and industrial piping mechanics install this fitting where a quick, reliable tee branch is needed without soldering or threading the tube itself.

This fitting is suited for general-purpose pneumatic lines, compressed air distribution, and light fluid conveyance in both residential and light commercial installations. It accepts 6 mm outside-diameter tubing on the push-to-connect ports and mates to a 1/8 inch BSPP male thread. The swivel feature simplifies alignment in confined spaces or pre-assembled panel work where fixed fittings would require torquing the entire line.

Key Features

• Push-to-connect design on tube ports eliminates threading or crimping the tube end
• Swivel function on the tee body allows tube routing adjustment after thread engagement
• Nickel-plated brass construction resists corrosion in damp or mildly aggressive service environments
• Nitrile O-ring sealing provides reliable performance across the full rated temperature range
• 260 psi maximum working pressure suits the majority of compressed-air and pneumatic control applications
• Rated from 0 degrees F to 175 degrees F for year-round indoor and outdoor use

Compatibility

Designed for general-purpose pneumatic and fluid-handling systems using 6 mm outside-diameter tubing with a 1/8 inch BSPP male threaded port connection.

Installation Notes

Installation should be performed by a qualified mechanic, plumber, or HVAC technician familiar with compressed-air or fluid piping systems. Depressurize and lock out the system completely before removing any existing fitting or inserting this adapter. Engage the BSPP male thread with an appropriate thread sealant compatible with the system fluid before tightening; tube insertion into the push-to-connect ports requires a clean, square-cut tube end seated fully until it bottoms out. Verify the system does not exceed 260 psi before returning to service.
