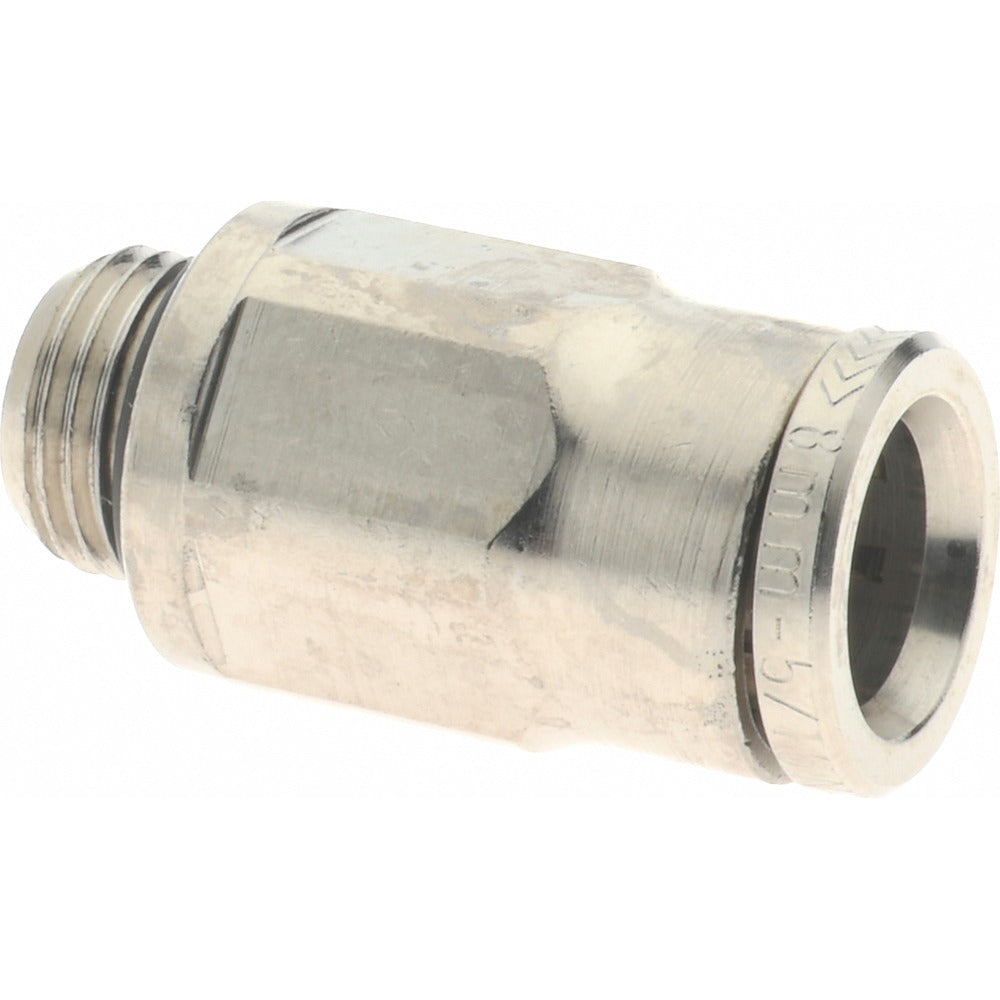

Norgren 102250818 Straight Adapter Fitting 8mm Bspp

Product Description

The NORGREN 102250818 is a push-to-connect straight adapter tube fitting designed to create a secure, leak-resistant connection between pneumatic or fluid tubing and a male BSPP threaded port. Built from nickel-plated brass, this fitting accepts 8mm outside diameter tubing and threads into a 1/8 inch BSPP male port. It is rated for a maximum working pressure of 260 psi and handles temperatures from 0 degrees F to 175 degrees F. The nitrile O-ring seal provides reliable performance in compressed air, pneumatic control, and general fluid-handling applications. HVAC technicians, plumbers, and industrial maintenance professionals install this type of fitting during equipment assembly or repair.

This fitting is suited for residential and light commercial pneumatic systems, compressed air lines, and fluid control circuits where a straight tube-to-male BSPP adapter is required. The push-to-connect design allows fast, tool-free tube insertion and secure retention without additional fittings or thread sealants on the tube side. Applications include pneumatic control panels, air preparation assemblies, and equipment that uses BSPP-threaded ports common in European and international equipment standards.

Key Features

• Push-to-connect tube end for fast, tool-free tube insertion and secure retention
• Accepts 8mm outside diameter tubing
• 1/8 inch BSPP male thread for direct port connection
• Nickel-plated brass construction for corrosion resistance and durability
• Rated to 260 psi maximum working pressure
• Nitrile O-ring seal compatible with compressed air and general fluid media
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed as an OEM-style replacement or service fitting for pneumatic and fluid systems using 8mm outside diameter tubing and 1/8 inch BSPP male-threaded ports.

Installation Notes

Depressurize and isolate the system completely before removing or installing any fittings. Cut tubing squarely and ensure the tube end is free of burrs before inserting into the push-to-connect end. Thread the BSPP male end into the receiving port by hand first, then tighten with an appropriate wrench to avoid cross-threading. Verify no leaks are present by slowly re-pressurizing the system and checking all connection points before returning equipment to service.
