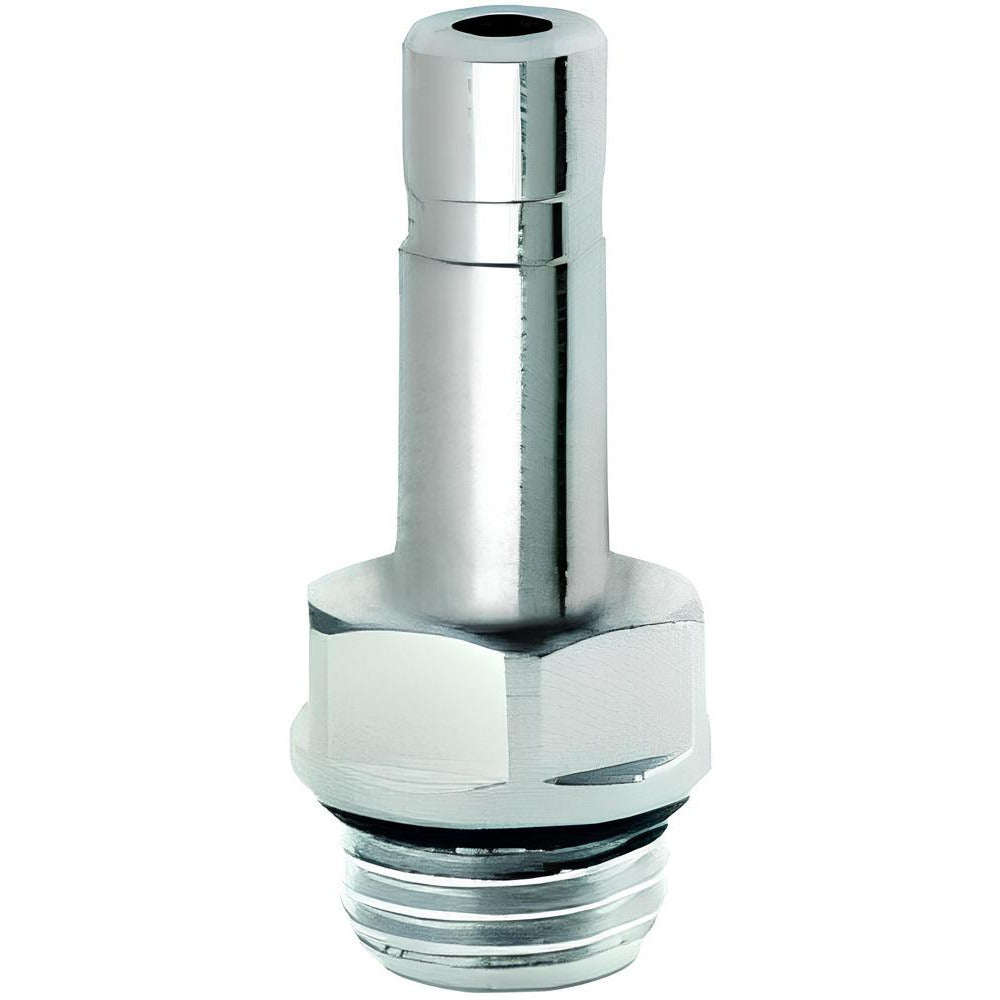

Norgren 102150618 Push-to-connect Tube Fitting

Product Description

The NORGREN 102150618 is a push-to-connect tube fitting configured in a stem-to-male BSPP arrangement. It is constructed from nickel-plated brass and rated for a maximum working pressure of 260 psi. The fitting accepts a 6 mm stem outside diameter tube on the push-to-connect end and terminates in a male BSPP threaded connection. Operating temperature range spans 0 degrees F to 175 degrees F, making it suitable for a wide range of fluid and pneumatic line applications. A nitrile O-ring provides the primary seal at the push-to-connect end. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting in general-purpose fluid transfer and compressed-air distribution lines.

This fitting is intended for general-purpose pneumatic and fluid system applications where a push-to-connect stem interface must transition to a male BSPP threaded port. Typical installations include industrial pneumatic control panels, fluid handling manifolds, and process equipment requiring a quick, tool-free tube connection on one end with a threaded male BSPP fitting on the other. The BSPP thread type is common in European and international equipment, making this fitting appropriate for imported machinery and globally specified systems.

Key Features

• Push-to-connect stem end accepts 6 mm outside diameter tubing for tool-free tube insertion
• Male BSPP threaded end for connection to standard parallel-thread ports
• Nickel-plated brass construction resists corrosion in general-purpose service environments
• Rated to 260 psi maximum working pressure
• Nitrile O-ring seal at push-to-connect interface
• Temperature range of 0 degrees F to 175 degrees F covers most industrial and HVAC pneumatic control applications

Compatibility

Designed for general-purpose pneumatic and fluid transfer systems requiring a push-to-connect stem to male BSPP threaded fitting. Compatible with 6 mm outside diameter tubing at the stem end.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or qualified pneumatic system technicians. Depressurize and isolate the line completely before removing or installing any fittings. Ensure the BSPP male threads are properly sealed with a thread sealant appropriate for the service fluid; BSPP is a parallel thread that relies on an O-ring or washer face seal rather than a tapered thread seal, so confirm the mating port is designed for a face-seal or O-ring interface. Insert tubing fully into the push-to-connect end until it seats against the internal stop before pressurizing the system.
