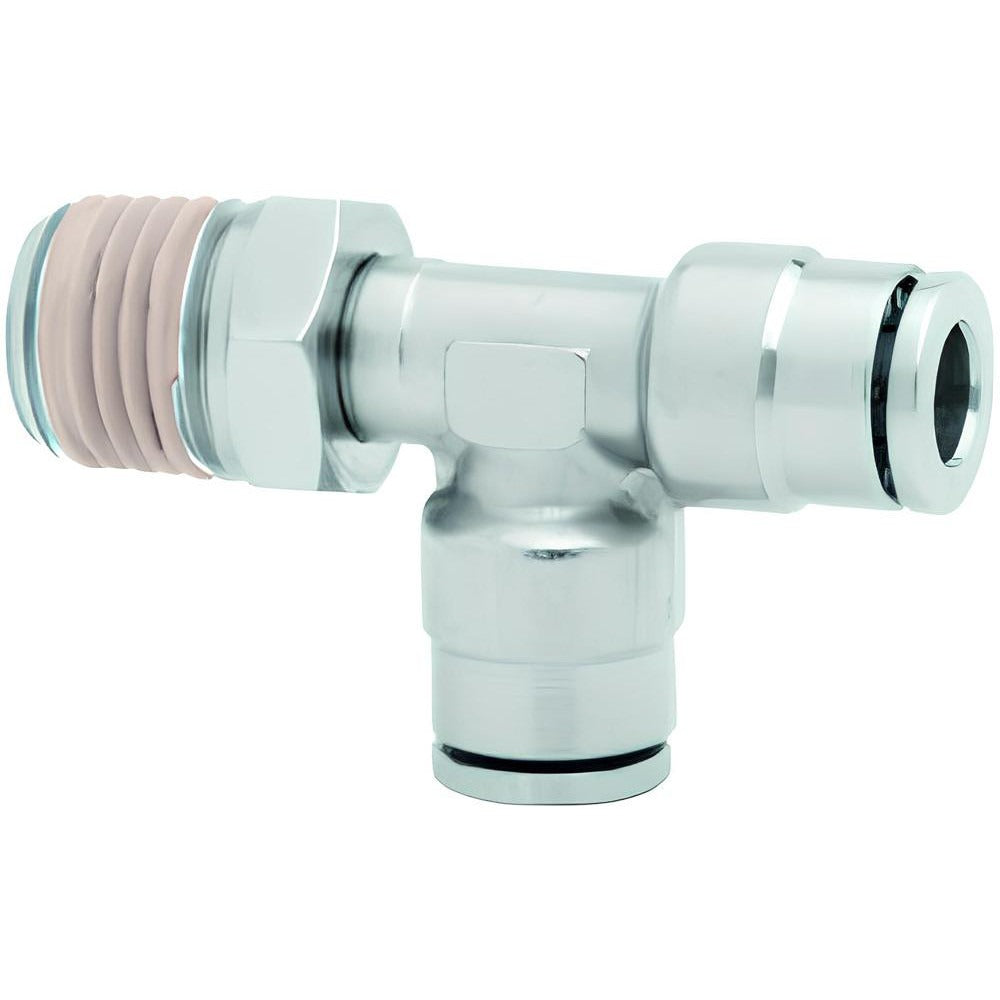

Norgren 101680418 Push-to-connect Male Bspt Fitting

Product Description

The NORGREN 101680418 is a push-to-connect tube-to-male BSPT tube fitting designed for fast, tool-free pneumatic and fluid line connections in general-purpose plumbing and instrumentation applications. Constructed from nickel-plated brass, this fitting accepts a 4 mm outside diameter tube on each tube port and threads into a 1/8 inch male BSPT port. It is rated to a maximum working pressure of 260 psi and handles temperatures from 0 degrees F to 175 degrees F, making it suitable for a wide range of compressed air, gas, and liquid service lines. Plumbers, pipefitters, and instrumentation technicians regularly specify this type of fitting for panel and manifold assemblies.

This fitting is suited for residential and commercial pneumatic systems, control panels, fluid power circuits, and general-purpose instrumentation lines where a reliable push-to-connect interface is required at a BSPT threaded port. The nitrile O-ring seal provides dependable performance across typical shop-air and light industrial service conditions. It is packaged individually and sold as a single unit.

Key Features

• Push-to-connect design allows fast tube insertion without tools on both tube ports
• 1/8 inch male BSPT threaded end for direct port integration
• Nickel-plated brass body resists corrosion in general-purpose service environments
• Rated to 260 psi maximum working pressure
• Nitrile O-ring seal for air, gas, and compatible fluid service
• Operating temperature range of 0 degrees F to 175 degrees F

Compatibility

Designed for general-purpose pneumatic and fluid line applications accepting a 4 mm outside diameter tube at the push-to-connect ports and a 1/8 inch male BSPT threaded connection at the port end.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified instrumentation technician. Depressurize and isolate the line before removing or installing any fitting. Confirm thread form compatibility before engaging the BSPT male thread, as BSPT is not interchangeable with NPT without an appropriate adapter. Ensure tube ends are cleanly cut and deburred before insertion into the push-to-connect ports to maintain a proper seal.
