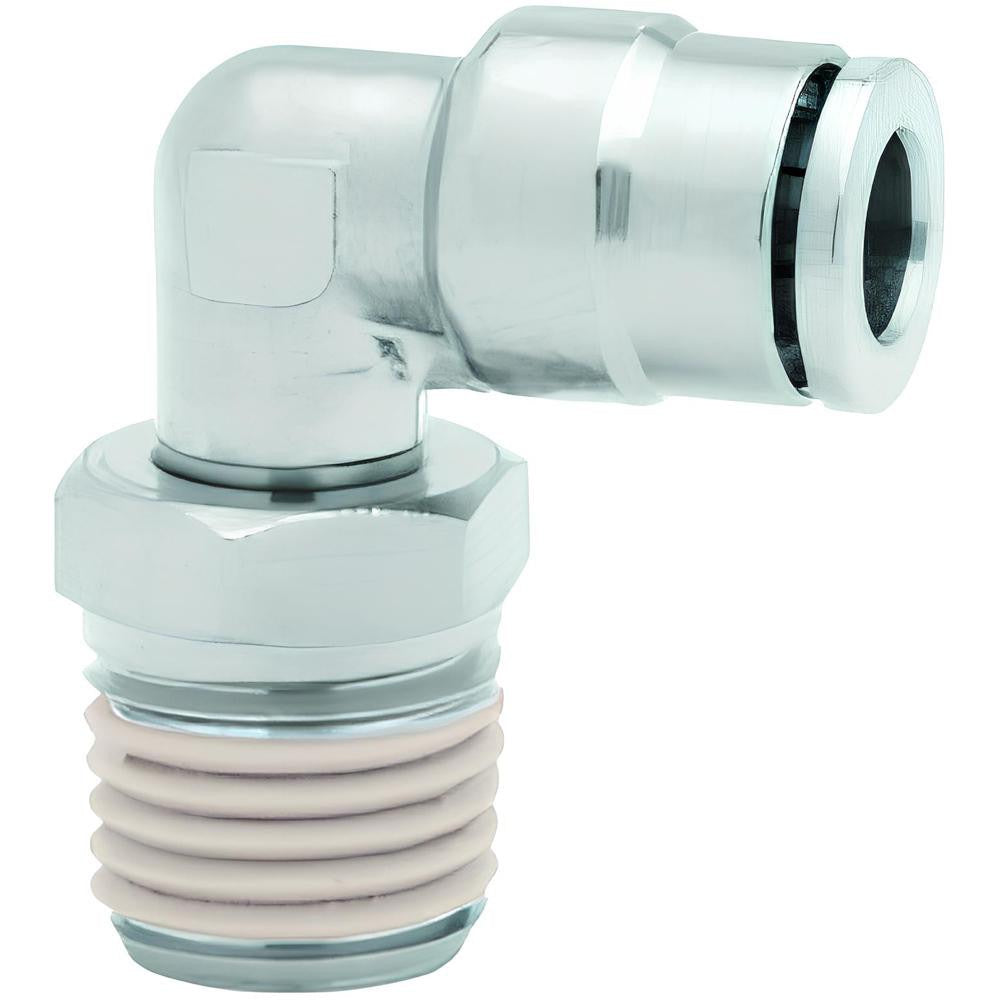

Norgren 101471048 90 Swivel Elbow Adapter Bspt

Product Description

The NORYGEN 101471048 is a push-to-connect 90-degree swivel elbow adapter designed for tube-to-male BSPT fittings in pneumatic and fluid handling systems. Constructed from nickel-plated brass with a nitrile O-ring, this fitting accommodates a 10 mm outside diameter tube on one end and a 1/2 inch BSPT male thread on the other. It handles working pressures up to 260 psi and operates across a temperature range of 0 degrees F to 175 degrees F. Plumbers, pipefitters, and pneumatic technicians install this fitting where a directional change is needed in a compressed air or fluid line without sacrificing leak-free performance.

This fitting is suited for general-purpose pneumatic and fluid systems in both residential and light commercial applications. The swivel elbow design allows rotation during installation, making it easier to orient tubing in tight spaces or where rigid routing is not practical. It is commonly used in pneumatic control lines, compressed air distribution, and general fluid transfer applications where BSPT threaded connections are specified.

Key Features

• Push-to-connect design for tool-free tube insertion and secure hold
• 90-degree swivel elbow allows rotational adjustment during installation
• Nickel-plated brass body resists corrosion in demanding service environments
• Nitrile O-ring provides reliable sealing across a wide temperature range
• Rated to 260 psi maximum working pressure
• Compatible with 10 mm outside diameter tubing and 1/2 inch BSPT male threads

Compatibility

Designed for general-purpose use with 10 mm outside diameter tubing and 1/2 inch BSPT male threaded ports in pneumatic and fluid handling systems.

Installation Notes

Installation is performed by licensed pipefitters or qualified pneumatic technicians. Depressurize and isolate the system completely before disconnecting or installing any fittings. Ensure the mating BSPT threads are clean and that an appropriate thread sealant approved for the service fluid is applied before tightening. Verify tube cut ends are clean, square, and free of burrs before inserting into the push-to-connect port to maintain a proper seal.
