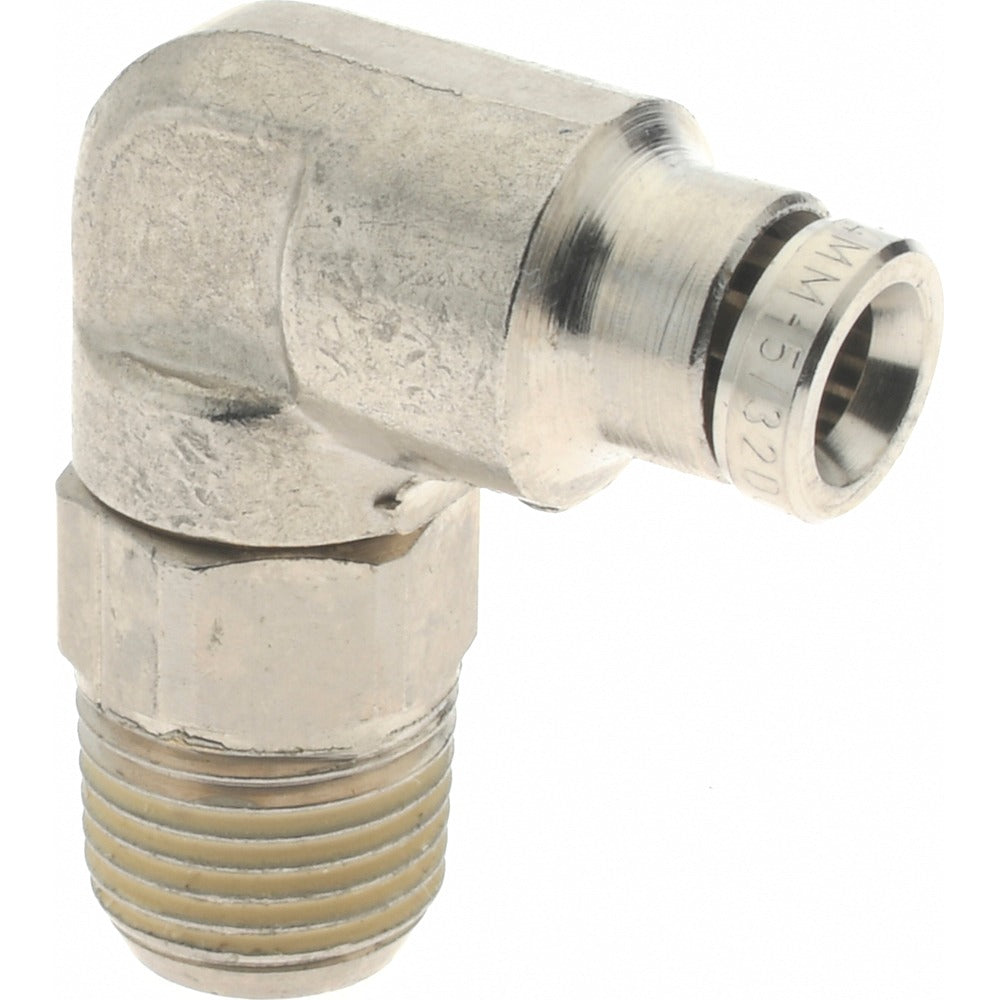

Norgren 101470418 90 Swivel Elbow Adapter Bspt 260 Psi

Product Description

The NORGREN 101470418 is a push-to-connect 90-degree swivel elbow adapter designed for tube-to-male BSPT pneumatic and fluid line connections. The fitting accepts a 4 mm outside diameter tube on the push-to-connect end and threads into a male BSPT port on the mating end. Constructed from nickel-plated brass with a nitrile O-ring, it is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. Plumbers, pneumatic system technicians, and industrial pipe fitters install this fitting where a directional 90-degree change is needed in a compressed-air or fluid distribution line.

This fitting is suited for light industrial, commercial, and OEM pneumatic plumbing applications that use BSPT threaded ports. The swivel elbow design allows the tube exit angle to be repositioned after installation, simplifying routing in tight or congested panel spaces. It is commonly found in pneumatic control panels, fluid power systems, and instrument air lines where compact, reliable tube connections are required. The 4 mm tube outside diameter makes it a standard fit in metric pneumatic tubing systems.

Key Features

• Push-to-connect tube end accepts 4 mm outside diameter tubing for tool-free tube insertion
• Swivel elbow body allows post-installation adjustment of tube exit direction
• Rated to 260 psi maximum working pressure
• Operating temperature range of 0 degrees F to 175 degrees F
• Nickel-plated brass construction resists corrosion in compressed-air and light fluid service
• Nitrile O-ring sealing for reliable leak-free performance

Compatibility

Designed as an OEM-style replacement or addition for pneumatic and fluid systems using BSPT male threaded ports and 4 mm outside diameter metric push-to-connect tubing.

Installation Notes

Installation should be performed by a qualified pneumatic or pipefitting technician. Depressurize and isolate the system completely before removing or installing any fittings. Thread the male BSPT end into the port using an appropriate wrench and sealant compatible with the system fluid before inserting tubing into the push-to-connect end. Verify the tube is fully seated and the system is leak-free before returning it to service.
