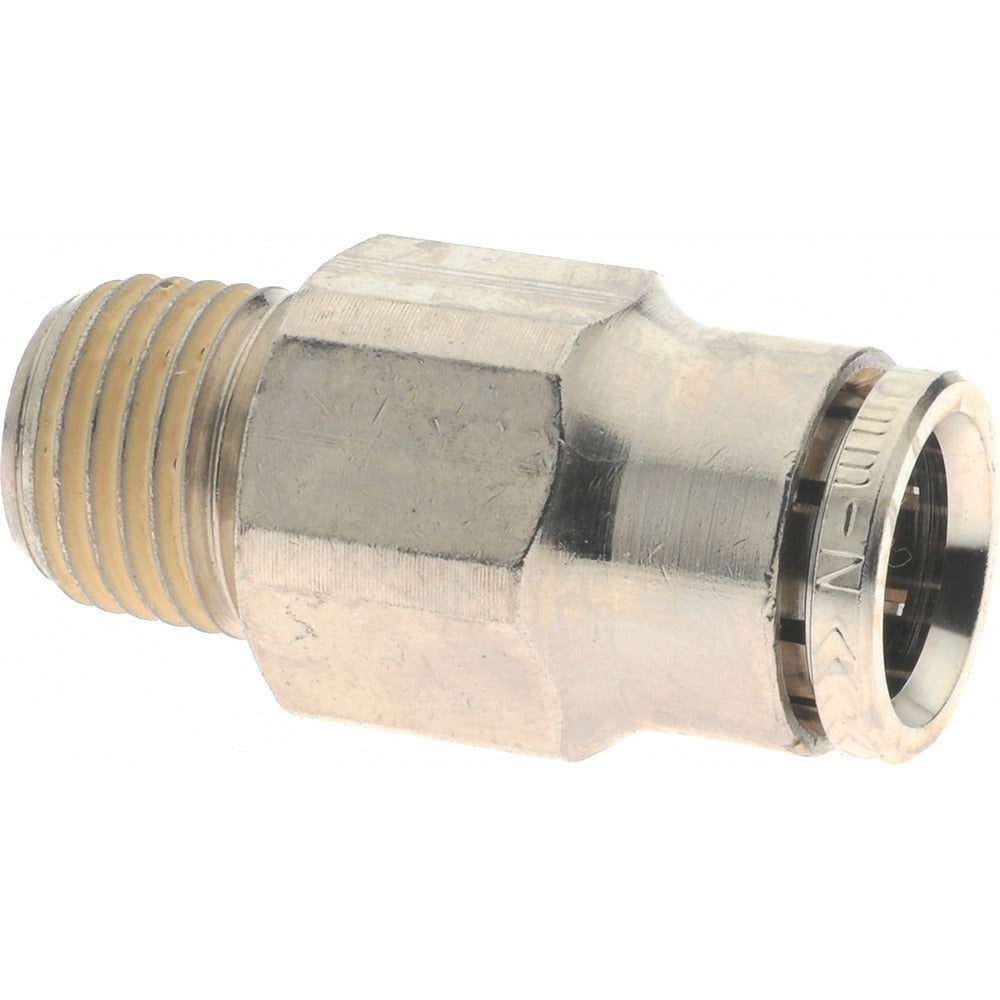

Norgren 101251028 Push-to-connect Straight Adapter Bspt

Product Description

The NORGREN 101251028 is a straight push-to-connect adapter fitting designed to join pneumatic or fluid tubing to a male BSPT threaded port in a single inline connection. Constructed from nickel-plated brass with a nitrile O-ring seal, this fitting accepts 10 mm outside diameter tubing on the push-to-connect end and threads directly into a 1/4 inch BSPT male port on the other. It is rated for a maximum working pressure of 260 psi and handles temperatures from 0 degrees F to 175 degrees F. Plumbers, pipefitters, and pneumatic system technicians install this type of fitting in compressed air lines, instrumentation tubing runs, and fluid control assemblies.

This adapter is suited for residential and light commercial pneumatic or fluid distribution systems where a quick-connect tube fitting must transition to a BSPT threaded component. The push-to-connect design allows tubing to be inserted and secured without tools, simplifying installation in tight spaces or during field repairs. The straight configuration keeps the assembly in-line, reducing overall plumbing complexity. Its compact overall length of 33 mm makes it practical in panel-mount or manifold applications where space is limited.

Key Features

• Push-to-connect end accepts 10 mm OD tubing without additional ferrules or tools
• 1/4 inch BSPT male threaded end for direct port connection
• Nickel-plated brass construction resists corrosion in air and compatible fluid service
• Nitrile O-ring seal provides reliable seating across the rated temperature range
• Rated to 260 psi maximum working pressure
• Compact 33 mm overall length suits space-constrained installations

Compatibility

Designed as an OEM-style straight adapter for pneumatic and fluid control systems using 10 mm OD push-to-connect tubing and 1/4 inch BSPT male threaded ports.

Installation Notes

Installation is typically performed by licensed plumbers, pipefitters, or pneumatic system technicians. Depressurize and isolate the line completely before removing any existing fitting or installing this adapter. BSPT threads are parallel and rely on sealant or tape for pressure-tight joints — apply an appropriate thread sealant to the male threads before assembly. Verify that the tubing OD matches the fitting specification and that the tubing is cut cleanly and squarely before insertion into the push-to-connect end.
