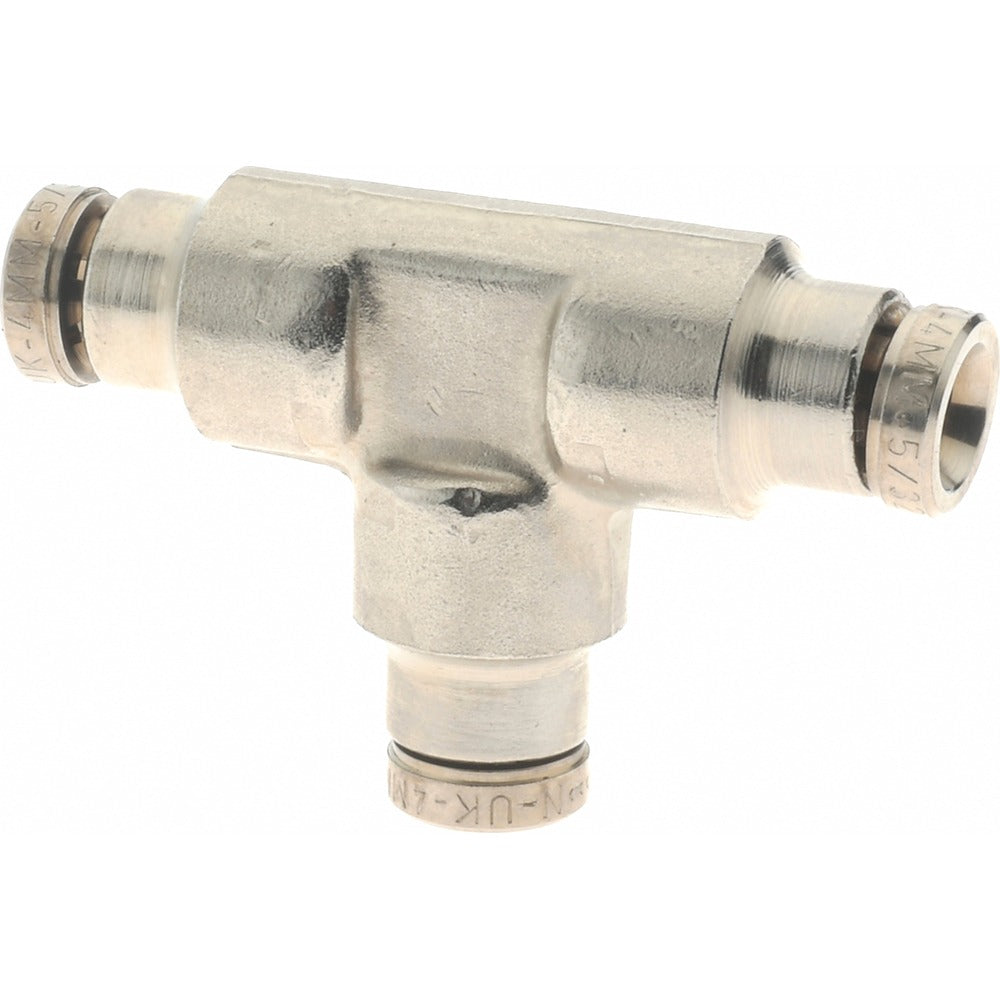

Norgren 100600400 Push-to-connect Tee Fitting 260 Psi

Product Description

The NORGREN 100600400 is a push-to-connect tube-to-tube tee fitting designed for pneumatic and fluid distribution lines. Constructed from nickel-plated brass with a nitrile O-ring, it delivers a rated maximum working pressure of 260 psi and handles temperatures from 0 degrees F to 175 degrees F. The tee configuration splits or combines flow across three ports without threaded connections, allowing fast, tool-free assembly in the field. HVAC technicians, plumbers, and pneumatic system technicians install this fitting when routing tubing through control panels, equipment enclosures, or compressed-air distribution networks where a reliable branch connection is required.

This fitting is suited for light-to-medium pneumatic and fluid control applications in both residential and commercial settings. Its push-to-connect mechanism accepts tubing with a 4 mm outside diameter on all three ports. Typical install scenarios include instrument air lines, pneumatic control circuits, and equipment tubing runs where quick assembly and disassembly reduce service time. The nickel-plated brass body resists corrosion in environments common to HVAC mechanical rooms and industrial panels.

Key Features

• Push-to-connect design allows tool-free tube insertion and removal
• Nickel-plated brass body provides corrosion resistance in demanding service environments
• Nitrile O-ring seals maintain integrity across the full rated temperature range
• Rated to 260 psi maximum working pressure for reliable pneumatic service
• Tee configuration enables branch connections in a single compact fitting
• Compact overall length of approximately 1.38 inches suits tight enclosure installations

Compatibility

Designed as an OEM-style replacement or new-installation push-to-connect tee fitting for pneumatic tubing lines using 4 mm outside diameter tubing.

Installation Notes

Installation is performed by HVAC technicians, pneumatic system technicians, or qualified plumbers working on instrument air or control tubing. Before servicing, isolate and depressurize the line completely and verify residual pressure has been relieved. Ensure tubing is cut squarely and deburred before inserting into the fitting to achieve a proper seal. Follow applicable codes and equipment manufacturer guidelines for maximum working pressure and temperature limits in the specific application.
