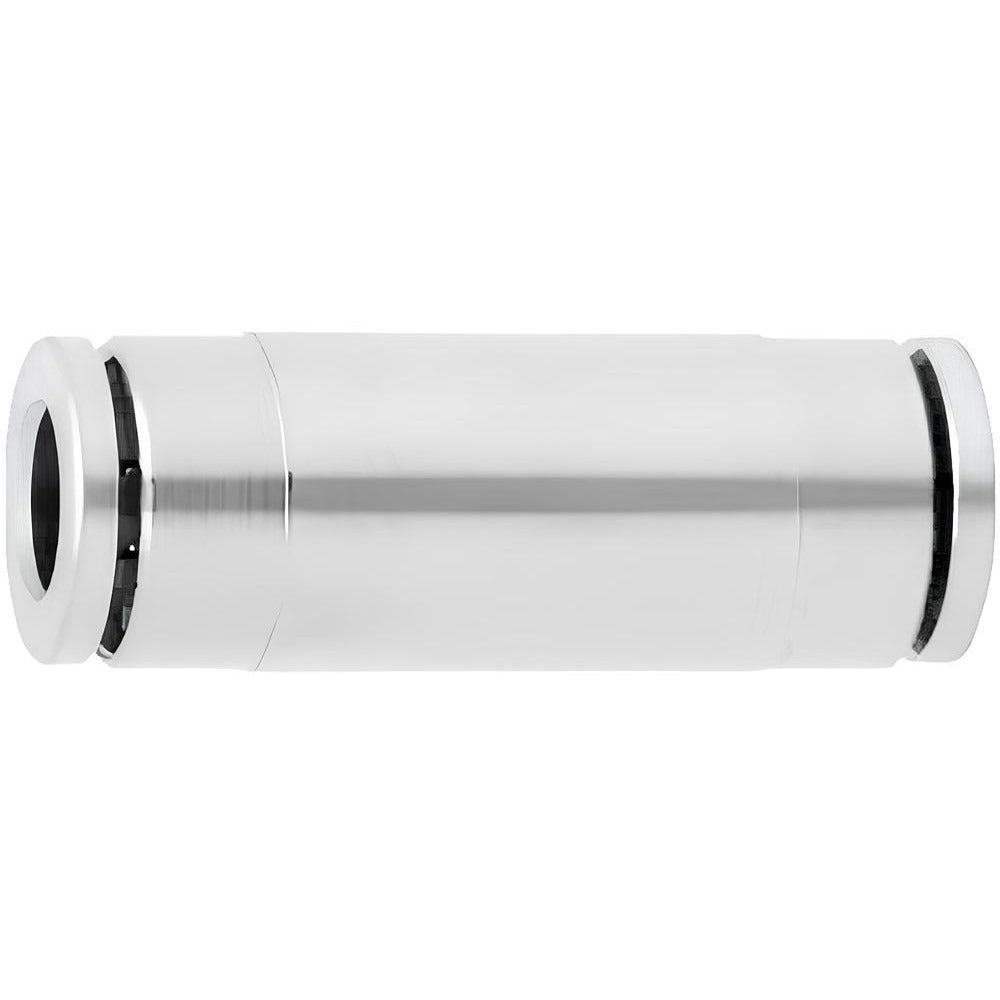

Norgren 100201000 Push-to-connect Straight Tube Fitting

Product Description

The NORGREN 100201000 is a push-to-connect straight tube-to-tube connector fitting made from nickel-plated brass. It joins two equal-diameter tubes in a straight run without tools, using a push-in collet mechanism for a secure, leak-resistant connection. The fitting is rated to 260 psi maximum working pressure and handles temperatures from 0 degrees F to 175 degrees F. The nitrile O-ring provides a reliable seal for general-purpose pneumatic and fluid systems. With an overall length of approximately 1.63 inches, the 100201000 is compact and suited for installations where space is limited. HVAC technicians, plumbers, and fluid-system mechanics regularly use this type of fitting in control-line and instrument-tubing applications.

This fitting is designed for general-purpose pneumatic and fluid-transfer systems where a fast, tool-free straight connection between two tubes is needed. It accepts tubing with a 10 mm outside diameter and is appropriate for use in residential and light commercial HVAC control lines, pneumatic instrument tubing, and similar low-to-medium-pressure service. The nickel-plated brass construction resists corrosion in typical indoor mechanical environments. It is sold individually and ships as a single unit.

Key Features

• Push-to-connect collet design allows tool-free tube insertion and removal
• Rated to 260 psi maximum working pressure
• Operating temperature range of 0 degrees F to 175 degrees F
• Nitrile O-ring seal for reliable, leak-resistant performance
• Nickel-plated brass body for corrosion resistance in indoor mechanical environments
• Compact overall length of approximately 1.63 inches suits tight installations

Compatibility

Designed for general-purpose use with 10 mm outside diameter tubing in pneumatic and fluid-transfer systems. No specific equipment compatibility data was provided by the manufacturer for this part number.

Installation Notes

Installation is typically performed by licensed HVAC technicians or pipefitters working on pneumatic control or instrument-tubing circuits. Before servicing any pressurized line, depressurize the system completely and verify pressure is at zero before inserting or removing the fitting. Ensure tubing ends are cut cleanly and squarely and are free of burrs before pushing into the collet to avoid O-ring damage or leaks. Follow applicable mechanical codes for pneumatic tubing installations in your jurisdiction.
