Norgren 03060022 Mechanically Operated Valve 1/4 Inch Npt

Product Description

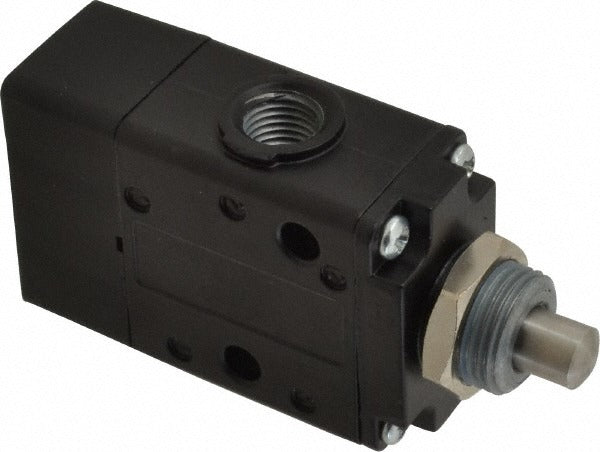

The NORGREN 03060022 is a mechanically operated directional control valve designed for pneumatic systems requiring reliable, repeatable flow control without electrical actuation. Built around a packed spool design with a plunger-style actuator, this 3-port, 2-position valve controls compressed air flow through spring return action. With a Cv rating of 0.98, it delivers consistent flow performance in industrial and trade applications. The 1/4 inch NPT inlet and outlet ports allow direct integration into standard pneumatic plumbing. Licensed pneumatic and mechanical trade professionals install this valve in automated machinery, process equipment, and controlled-environment systems.

This valve is suited for industrial pneumatic circuits where mechanical actuation is preferred over solenoid or manual operation. Typical installations include machine tool controls, actuator sequencing panels, and pneumatic logic circuits in light manufacturing or process environments. The spring return configuration ensures the valve defaults to a known position when the plunger is not depressed, providing a predictable fail-state for safety-sensitive applications. The black-body construction and compact form factor allow mounting in confined panel or manifold assemblies.

Key Features

• Packed spool design for low internal leakage and consistent cycle life
• Plunger actuator allows direct mechanical triggering from cams, levers, or contact surfaces
• Spring return ensures automatic reset to default position when actuator force is removed
• Cv rating of 0.98 supports moderate flow requirements in 1/4 inch pneumatic lines
• 1/4 inch NPT ports on both inlet and outlet for straightforward plumbing integration
• 3-port, 2-position configuration for standard directional switching in pneumatic circuits

Compatibility

Designed as an OEM-style replacement or direct-fit component for pneumatic directional control circuits using 1/4 inch NPT connections and requiring a 3-port, 2-position mechanically actuated valve.

Installation Notes

Installation should be performed by a qualified pneumatic technician or mechanical tradesperson familiar with compressed air system safety. Depressurize and lock out the pneumatic supply before removing any existing valve or making port connections. Use appropriate thread sealant rated for compressed air on NPT connections and avoid overtightening, which can crack valve bodies. Verify plunger alignment with the actuating cam or lever before returning the system to service.
