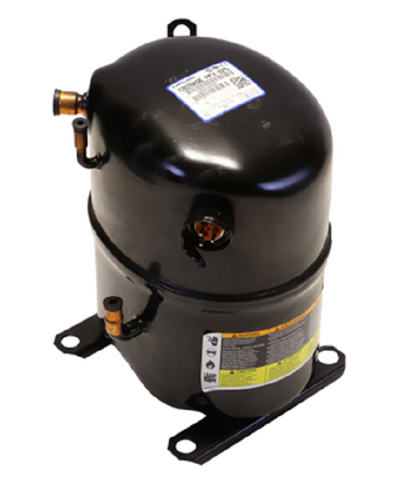

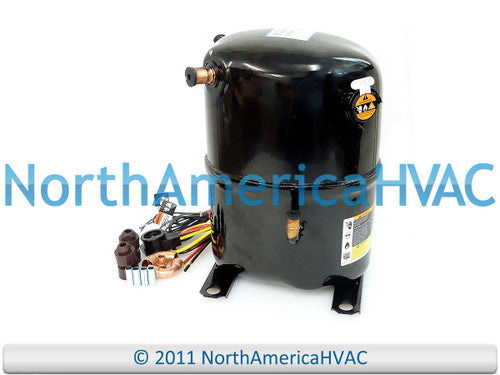

NORDYNE 922136A Compressor

Product Description

The NORDYNE 922136A is a compressor suitable for HVAC and refrigeration systems. Operating at 208/230V and utilizing R-22 refrigerant, this single-phase compressor delivers a cooling capacity of twenty-seven thousand three hundred BTU. It is designed for residential and light commercial settings.

• Cooling capacity of twenty-seven thousand three hundred BTU
• Operates on 208/230V single-phase power
• Uses R-22 refrigerant

Product Highlights

The compressor comes with a crankcase heater and serves as a direct factory replacement for Copeland and Bristol compressors.

Product Information

Standard Information

• Brand: Nordyne
• Refrigerant Type: R-22

Technical Specifications

• Voltage: 208/230 Volts
• Phase: 1
• BTU: 27300
• Running Current @ BTUH: 14.0 Amperes
• Discharge Inside Diameter: 3/8 Inch
• Line Connection Suction Inside Diameter: 3/4 Inch
• Base Mount Hole Center Size: 7 1/2 x 7 1/2 Inches
• Length: 9 7/16 Inches
• Height: 14 3/16 Inches
• Width: 9 Inches
• Series: CR
• Crank Case Heater: Yes
