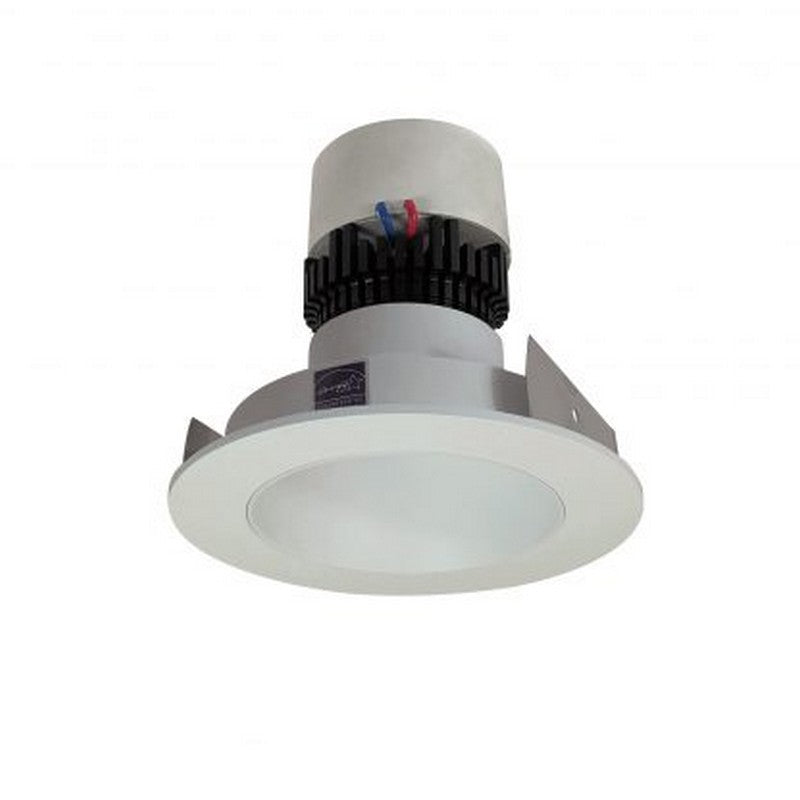

Nora Lighting NPR-4RNDC30XWW 4 in Pearl Led Retrofit 12W 3000K

Product Description

The NORA LIGHTING NPR-4RNDC30XWW is a 4-inch Pearl LED round retrofit reflector designed to upgrade existing recessed housings without requiring a full fixture replacement. Rated at 12 watts and delivering 1000 lumens at 3000K with a CRI of 90 or higher, this unit provides efficient, high-quality light output from a compact form factor. The die-cast aluminum body and integrated aluminum heat sink work together to manage thermal load and extend rated life to 50,000 hours at L70. The deep regressed cone reflector promotes visual cut-off, reducing glare in the field of view. Electrical and lighting contractors install this retrofit luminaire in residential and light-commercial recessed lighting applications.

This retrofit reflector is cULus classified for use in existing IC and Non-IC recessed housings, including those manufactured by Nora Lighting and other major housing brands. The round aperture with white reflector and white flange finish suits standard 4-inch recessed ceiling applications in living spaces, hospitality settings, hallways, and retail environments. Dimming is handled via Triac or ELV dimmers at 120 volts, making it straightforward to integrate into standard residential or light-commercial dimming circuits. Field-changeable optics allow the installer to select 29-degree spot, 43-degree narrow flood, or 62-degree flood distributions. Optional 15-degree and 25-degree TIR optics are also available separately. The fixture also supports Comfort Dim, which shifts color temperature from 3100K down to 2000K, though that mode operates at 800 lumens.

Key Features

• 12W input delivering 1000 lumens at 3000K with 90-plus CRI for accurate color rendering
• Deep regressed cone reflector provides optimal visual cut-off and glare control
• Die-cast aluminum body and threaded aluminum heat sink for effective thermal management
• Field-changeable optics: 29-degree spot, 43-degree narrow flood, and 62-degree flood included; 15-degree and 25-degree TIR optics available separately
• Triac and ELV dimming compatible at 120 volts
• Friction blade mounting system secures unit to existing recessed housing without additional hardware
• Rated 50,000 hours at L70 for long service intervals

Compatibility

cULus classified for installation in existing IC and Non-IC recessed housings manufactured by Nora Lighting and other major housing brands. Designed as an OEM-style 4-inch round retrofit reflector for standard residential and light-commercial recessed lighting systems.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit and verify power is off at the breaker before handling the existing housing or wiring. Seat the friction blades firmly against the inside of the housing to ensure a secure, stable mount. Confirm that the dimmer on the circuit is rated for Triac or ELV operation to ensure proper dimming performance and avoid flicker.

Technical Specifications

• Wattage: 12W
• Lumens: 1000 lm (800 lm in Comfort Dim mode)
• Color Temperature: 3000K
• CRI: 90+
• Input Voltage: 120V
• Dimming: Triac or ELV
• Aperture Size: 4 inches
• Beam Angles: 29 degrees spot, 43 degrees narrow flood, 62 degrees flood (field changeable)
• Operating Temperature: 0 degrees C to 25 degrees C ambient
• Rated Lifetime: 50,000 hours at L70
• Construction: Die-cast aluminum reflector and heat sink
• Mounting: Friction blade
• Finish: White reflector and white flange
• Listing: cULus classified for IC and Non-IC housings

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NPR-4RNDC30XWW
