Nora Lighting nhioicd-215le4 iolite new construction housing 20W

Product Description

The Nora Lighting NHIOICD-215LE4 is a new construction housing designed for Nora Lighting's 2" Iolite LED downlight series. Rated for insulated ceilings, it can be in direct contact with insulation. Its airtight construction saves energy by reducing airflow through the ceiling. The patented design allows easy, tool-less driver removal.

• IC Airtight rated
• Emergency options
• Dimmable

Product Highlights

IC rated for direct contact with insulation, this housing features tool-free driver removal and adjustable bar hangers for easy installation.

Product Information

Standard Information

• Brand: NORA LIGHTING
• Manufacturer Part Number: NHIOICD-215LE4
• Country of Origin: China

Technical Specifications

• Family: Iolite
• Aperture Size: 2"
• Light Source: LED
• Construction Type: New Construction, Air-Tight IC
• Dimming: Lutron Hi-Lume EcoSystem, 0-10V, DALI, Triac / ELV
• Options: Emergency
• Flange Type: Trimless
• Color Temperature: Comfort Dim (Warm Dim), Dedicated CCT
• Product Type: Housing
• Brand: Nora Lighting
• Manufacturer Part Number: NHIOICD-215LE4
• UPC: 732180229543
• Input Voltage: 120-277V
• Special Features: IC Rated

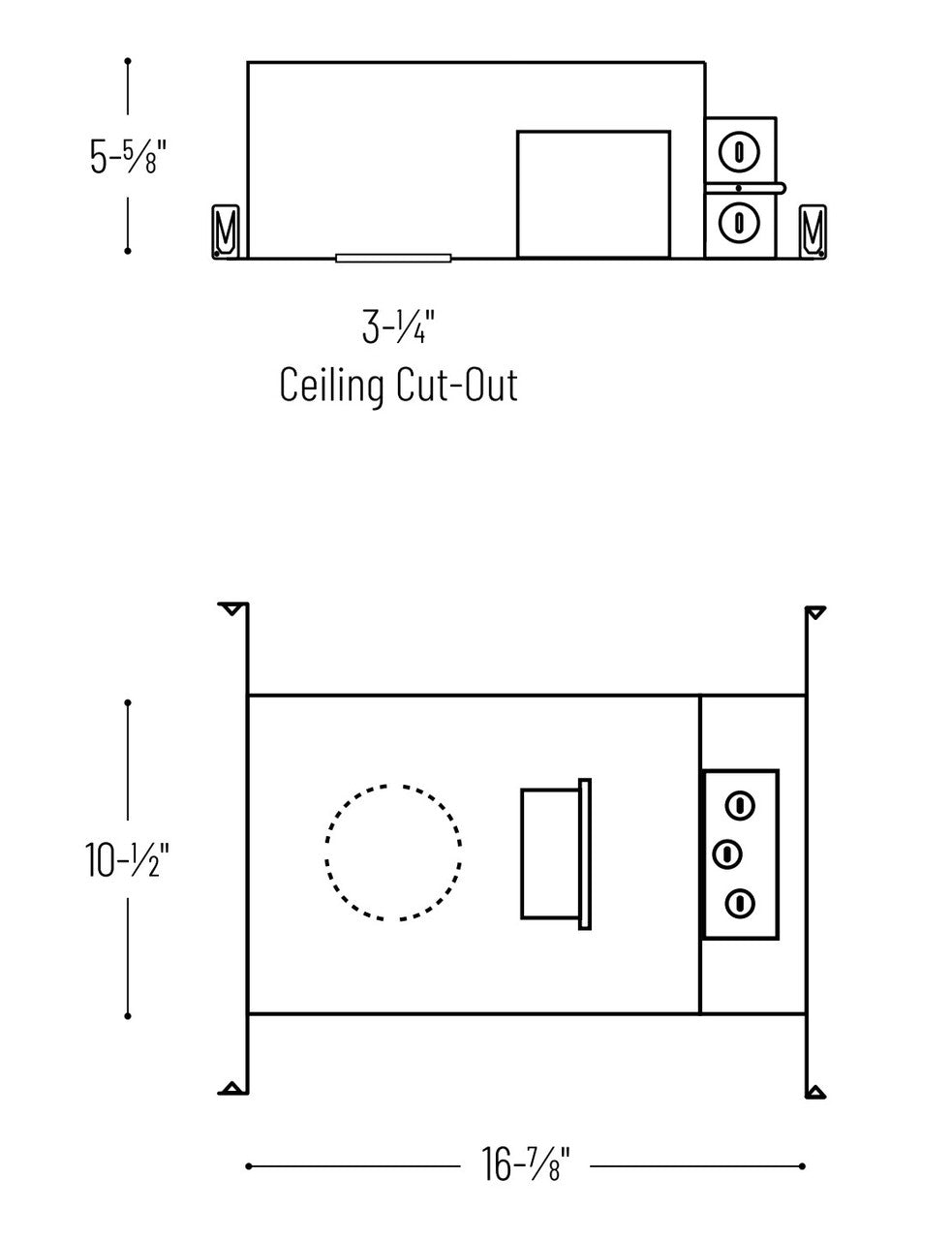

• Length: 16.88"
• Width: 10.5"
• Height: 5.63"
• Size: 2 Inches
• Type: IC Air-Tight New Construction
• Wattage: 20W
• Lumens: 1500
• Voltage: 120/277V
• Application: New Construction, IC Air-Tight Housing
• Compatible Trims: NIOB-2 series (Round/Square, Deep Reflector, Gimbal, Bullnose, Pinhole)
• Ceiling Cutout: 3-1/4"
• Operating Temperature: 40 00b0C max
• Cutout Size: 3.25 in.
• Item Height: 6 in
• Item Length: 6 in
• Item Width: 11 in
• Material: Aluminum
• Number of Bulbs: 1
• Trim Size: 2 in.
• Depth: 5.625 in.
• Bulb Base: Integrated LED
• Bulb Type: LED
• Dimmable: Yes
• Housing Type: New Construction Housing
• LED: Yes
• Light Direction: Down Lighting
• Shallow Ceiling Compatible: No
• Airtight: Yes
• IC Rating: IC
• Location Rating: Damp Location
• Collection: Iolite
• Series: Iolite
• Voltage Type: Commercial Voltage (125V+), Line Voltage (110-120V)
• Brand Category: Recessed Housing
• SKU: NHIOICD-215LE4
• Lamping Included: Bulbs Not Included
• Primary Number of Bulbs: 1
• Total Number of Bulbs: 1
• Weight: 5.75
• Bulb Shape Code: Integrated LED
• Compatible Product: Certain Nora Lighting models.
• Model: NHIOICD-215LE4
• Country of Origin: China
• Bulb Wattage: 20
• Color: N/A
• Compatible Brand: Nora Lighting
• Compatible Model: Certain Nora Lighting models.
• Features: Nora Lighting NHIOICD-215LE4 Iolite LED New
