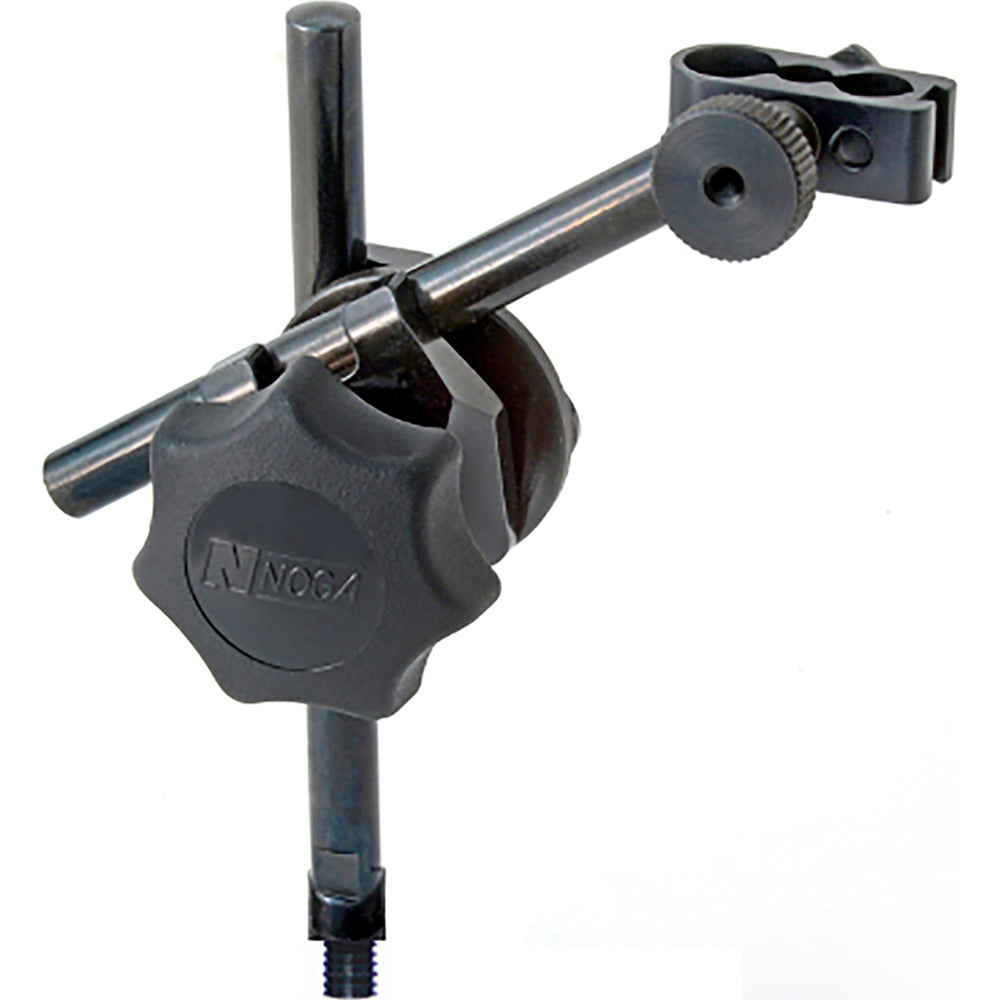

Noga PH3101 Indicator Positioner Holder

Product Description

The NOGA PH3101 is an indicator positioner holder designed to secure dial indicators and similar measuring instruments during inspection and calibration tasks. This holder provides a stable mounting point that keeps the indicator fixed in position while measurements are taken. It is a compact, lightweight component used in precision measurement setups across manufacturing, machining, and quality-control environments. Weighing 0.6 pounds and measuring 4.72 inches in height with a 0.4-inch width and 0.4-inch length, the PH3101 fits into tight workspaces where consistent indicator placement is required.

The PH3101 is suited for use in machine shops, fabrication facilities, and quality inspection stations. It is typically installed on magnetic bases, articulating arms, or surface plate setups where a dial indicator must be held at a precise angle or position. Machinists, tooling technicians, and quality control inspectors are the primary users of this type of holder during runout checks, bore measurements, and surface flatness inspections.

Key Features

• Compact profile at 4.72 inches tall and 0.4 inches wide for use in confined measurement setups
• Lightweight at 0.6 pounds for easy repositioning during inspection tasks
• Designed to hold dial indicators and comparable gauging instruments securely
• No fine adjustment mechanism - straightforward fixed-position holding
• Sold individually as a single-unit component

Compatibility

Designed as an OEM-style positioner holder compatible with standard dial indicator mounting setups used in precision measurement and inspection applications.

Installation Notes

Installation is typically performed by a machinist or metrology technician without the need for specialized tools. Ensure the mating base or arm is fully secured before attaching the indicator to avoid measurement error. Verify that the indicator spindle is free of debris and that the holder is torque-free and stable before recording measurements. Follow the equipment manufacturer guidelines for any articulating base or stand used in conjunction with this holder.
