Noga PH3100 Indicator Positioner Holder 70 Lb Magnetic

Product Description

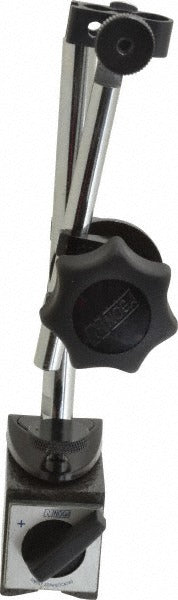

The NOGA PH3100 is a magnetic-base indicator positioner holder designed for precision measurement and inspection work on machine tools, surface plates, and fabrication setups. The unit features a 70 lb magnetic pull base that locks firmly to ferrous surfaces, a post and articulated arm configuration for multi-axis positioning, and a fine adjustment mechanism that allows dial indicators and test indicators to be zeroed in without disturbing the overall setup. The overall length is 8 inches, and the rectangular base stands 1.38 inches tall. Machinists, quality technicians, and toolroom professionals are the primary installers and users of this holder.

The PH3100 is suited for precision measurement applications in machine shops, toolrooms, and quality control environments. It mounts to any clean, flat ferrous surface and accepts standard dial indicators or test indicators via the included attachment hardware. The post height is 120 mm and the post diameter is 10 mm. The articulated arm extends 110 mm and has an 8 mm diameter. The clamping diameter accommodates indicators with 3/8 inch shanks as well as 6 mm and 8 mm shanks, covering a wide range of standard indicator body sizes used in trade and industrial settings.

Key Features

• 70 lb magnetic pull provides a secure hold on ferrous machine surfaces
• Fine adjustment mechanism allows precise indicator positioning without full re-clamping
• Post and articulated arm style enables multi-axis reach and repositioning
• Accepts 3/8 inch, 6 mm, and 8 mm indicator shank diameters
• Includes magnetic base, post arm, articulated arm, and indicator attachment hardware
• Rectangular base profile fits standard surface plate and machine table setups

Compatibility

Designed for use with standard dial indicators and test indicators featuring 3/8 inch, 6 mm, or 8 mm shank diameters. Suitable for mounting on any flat, clean ferrous surface.

Installation Notes
