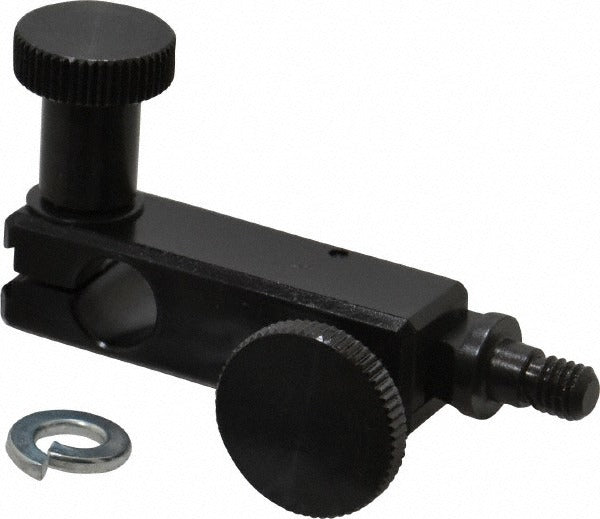

Noga FA1301 Fine-adjustment Clamp Dial Test Indicator

Product Description

The NOGA FA1301 is a fine-adjustment clamp designed for use with magnetic indicator bases in precision measurement setups. Measuring 62 millimeters in length, this clamp provides controlled, incremental positioning of dial and test indicators during inspection and layout work. It attaches to standard magnetic base columns and allows the technician to dial in exact indicator position without disturbing the coarse setup. Machinists, tool-and-die technicians, and quality-control professionals rely on this type of accessory when repeatable, fine-position adjustments are critical to accurate measurement.

The FA1301 is suited for use on surface plates, machine tables, and production fixtures wherever a dial or test indicator must be held in a fixed, finely adjusted position. It is a single-piece accessory sold individually and is intended as a component of a larger magnetic base indicator system. Typical applications include runout checks, flatness inspection, and workpiece alignment on manual or CNC machine tools.

Key Features

• 62 millimeter body length provides reach for flexible indicator positioning
• Designed specifically for use with dial and test indicators
• Fine-adjustment mechanism enables precise, incremental indicator positioning
• Compatible with standard magnetic indicator base column systems
• Compact, single-piece construction with no additional hardware required

Compatibility

Designed as a fine-adjustment clamp accessory for use with dial and test indicators mounted on magnetic indicator bases.

Installation Notes

Installation requires no special tools. Secure the clamp to the magnetic base column before attaching the indicator, then use the fine-adjustment mechanism to achieve final position. Ensure the magnetic base is fully engaged and locked before taking measurements. Do not overtighten the clamp body, as this may damage the column or the clamp mechanism.
