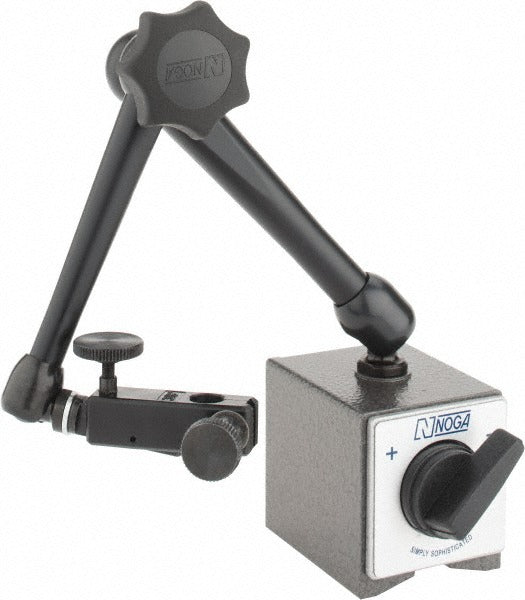

Noga DG1033 Indicator Positioner Holder 175 Lb Pull

Product Description

The NOGA DG1033 is an articulated-arm indicator positioner holder designed for precise dial indicator positioning in machine shop, maintenance, and quality-control environments. It features a 175 lb magnetic pull rectangular base that locks firmly to ferrous surfaces, eliminating unwanted movement during measurement. Fine adjustment capability allows the technician to dial in exact indicator position without repositioning the entire arm. The articulated arm extends to 261.00 mm with an overall length of 316.00 mm, providing flexible reach across a variety of workpiece setups. The base and holder are included as a complete assembly ready for immediate use.

The DG1033 is suited for use on surface plates, machine tool tables, lathe beds, mill tables, and any ferrous flat surface where a dial indicator, test indicator, or similar gauge needs to be held securely. It is commonly used by machinists, tool and die makers, and maintenance technicians performing runout checks, alignment work, surface measurement, and fixture setup. The fine adjustment feature makes it particularly useful in tight tolerances where coarse repositioning would disturb the reading.

Key Features

• 175 lb magnetic pull provides a stable, slip-resistant hold on ferrous surfaces
• Fine adjustment mechanism allows precise indicator positioning without disturbing the base
• Articulated arm design accommodates complex positioning angles and reach requirements
• Rectangular magnetic base with adjustable base type included in the assembly
• 3/8 inch clamping diameter and M8 thread size for broad gauge compatibility
• Compact base footprint at 60.00 mm length and 55.00 mm height suits confined setups

Compatibility

Designed as an OEM-style positioner for use with standard dial indicators and test indicators featuring a 3/8 inch stem diameter, common across most major gauge brands.

Installation Notes

Installation requires placement on a clean, flat ferrous surface free of oil, chips, and debris to achieve full magnetic holding force. Disengage the magnetic base switch before repositioning to avoid dragging across precision surfaces. Fine adjustment should be set only after the base is fully locked and the articulated arm joints are snugged to near-final position. No special tools or codes are required for setup, but always verify indicator stem clamp torque is sufficient to prevent stem creep during measurement.
