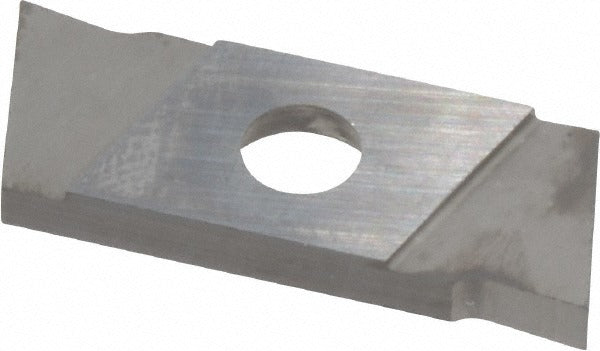

Nikcole Mini-systems GIE7SG1.85LC6 Grooving Insert C6

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG1.85LC6 is a left-hand solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. It carries a manufacturer grade of C6 and features a 1.85 mm cutting width with a maximum depth of cut of 6 mm. The SG chip breaker geometry helps control chip flow during tight-tolerance grooving passes. At 17 mm overall length and 7 mm cutting height, the insert fits compact mini-system toolholders. It is installed by machinists and toolroom technicians working in production or job-shop turning environments where repeatable groove geometry is required.

This insert is suited for external grooving applications on CNC turning equipment. The left-hand orientation makes it appropriate for operations where the tool approaches from the right side of the workpiece or where specific clearance geometry is needed. The GIE insert style and SG chip breaker are optimized for controlled chip evacuation in shallow-to-medium depth grooves. It is a single-use insert held in place by a screw-type clamping mechanism and is sold individually, though a minimum order quantity of 10 pieces applies.

Key Features

• Solid carbide construction with C6 grade for wear resistance in grooving applications
• 1.85 mm cutting width for precise, narrow groove profiles
• Maximum depth of cut of 6 mm, within a range of 5 mm to 10 mm for the insert series
• Left-hand cutting orientation for specific toolholder and approach configurations
• SG chip breaker geometry for controlled chip formation and evacuation
• Screw-type insert holding method for secure, repeatable seating
• Manufactured to ISO 9001 quality standards

Compatibility

Designed for use with NIKCOLE MINI-SYSTEMS GIE-series screw-clamp grooving toolholders that accept the GIE7SG insert style and seat geometry.

Installation Notes

Installation is performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before seating or replacing the insert. Use the appropriate torx or hex key to tighten the clamping screw to the toolholder manufacturer specification. Inspect the insert pocket for chips or debris before seating the new insert to ensure proper contact and repeatability.
