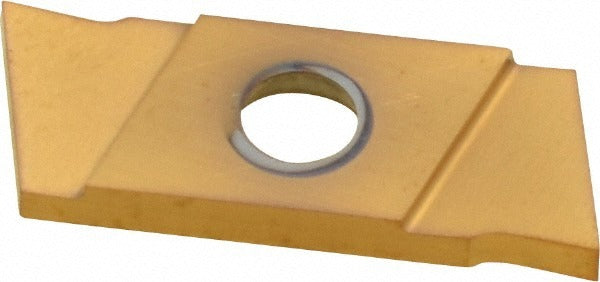

Nikcole Mini-systems GIE7SG1.6L Gold Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG1.6L GOLD is a solid carbide grooving insert engineered for precision external grooving and parting operations on CNC lathes and turning centers. Designed in the GIE style with a left-hand cutting orientation, this insert features a 1.6 mm (0.0630 inch) cutting width and a maximum depth of cut of 6.00 mm (0.2362 inches). The insert is finished with a PVD-applied TiN coating that extends tool life and improves wear resistance. It incorporates an SG chip breaker geometry and is held in place via a screw-clamp method for rigid, repeatable positioning. Manufactured to ISO 9001 standards, it is suited for use by machinists and tooling specialists in production environments.

This insert is intended for use in CNC turning applications where tight-tolerance grooving, undercutting, or parting is required. The left-hand configuration suits specific spindle orientations and toolholder setups common in multi-axis turning operations. With a cutting height of 7.00 mm (0.2756 inches) and an overall length of 17.00 mm (0.6693 inches), this insert fits compact toolholder pockets within the Nikcole Mini-Systems series. It is appropriate for both production shops and job shops running ferrous and non-ferrous materials where a C6 material grade carbide is specified.

Key Features

• 1.6 mm (0.0630 inch) cutting width for narrow grooving applications
• Maximum depth of cut of 6.00 mm (0.2362 inches); rated range 5.00 to 10.00 mm
• PVD TiN coating for enhanced wear resistance and extended tool life
• SG chip breaker geometry for controlled chip evacuation
• Screw-clamp holding method for secure, repeatable insert positioning
• Manufactured to ISO 9001 quality standards

Compatibility

Designed for use with Nikcole Mini-Systems series GIE-style screw-clamp toolholders configured for left-hand grooving inserts with a 1.6 mm cutting width.

Installation Notes

Installation should be performed by a qualified machinist or tooling technician familiar with CNC turning toolholder systems. Power down and lock out the machine before changing inserts. Use the appropriate Torx or hex key as specified by the toolholder manufacturer when tightening the clamp screw - do not overtighten. Confirm insert seating and alignment before resuming cutting operations.
