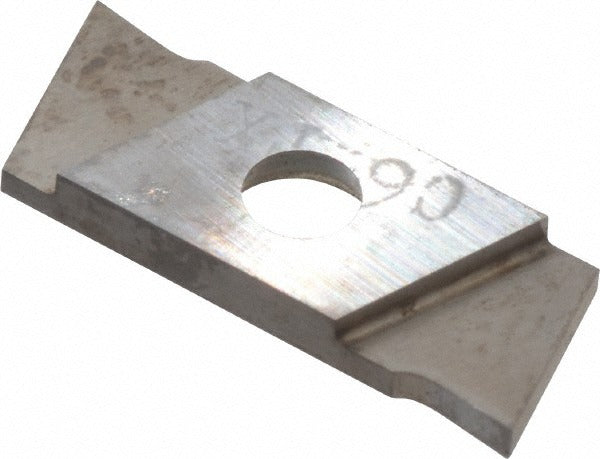

Nikcole Mini-systems GIE7SG1.3L C6 Grooving Insert Solid Carbide

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG1.3L C6 is a left-hand solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. The insert delivers a 1.3 mm (0.0512 inch) cutting width and a maximum depth of cut of 6.00 mm (0.2362 inch), making it well suited for narrow groove applications where dimensional accuracy is critical. The C6 carbide grade provides the hardness and wear resistance required for consistent performance in production environments. Screw-type holding secures the insert firmly in compatible toolholders during operation.

This insert is intended for use in metalworking applications on CNC turning and mill-turn equipment. It is part of the Nikcole Mini-Systems series, which is oriented toward small-diameter grooving and parting work in both production and job-shop environments. The SG chip breaker geometry assists with chip control during grooving passes. Machinists and CNC operators in industrial manufacturing settings are the primary installers and users of this insert.

Key Features

• Left-hand cutting orientation for specific grooving setups
• 1.3 mm cutting width for narrow, precise grooves
• Maximum depth of cut of 6.00 mm suits a range of groove depth requirements
• Solid carbide construction in C6 grade for hardness and wear resistance
• SG chip breaker geometry for controlled chip evacuation
• Screw-type insert holding method for secure, repeatable seating

Compatibility

Designed as an OEM-style replacement or direct-use insert for compatible Nikcole Mini-Systems grooving toolholders that accept GIE-series, screw-clamped inserts with a 7SG insert size code.

Installation Notes

Installation is performed by qualified CNC machinists or toolroom technicians. Before replacing or seating the insert, ensure the machine is in a safe, powered-down state and the spindle is fully stopped. Use the appropriate torx or hex key as specified by the toolholder manufacturer to tighten the clamping screw to the recommended seating feel - do not overtighten, as this can crack the carbide. Verify insert orientation and hand designation match the toolholder before resuming cuts.
