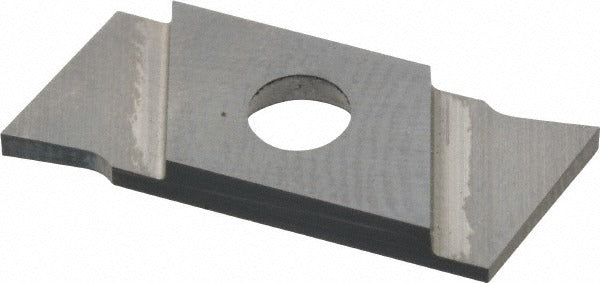

Nikcole Mini-systems GIE7SG1.1R C2 Grooving Insert Solid Carbide

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG1.1R C2 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. Manufactured to the GIE style with an SG chip breaker geometry, this right-hand insert delivers a 1.1 mm (0.0433 inch) cutting width and a maximum depth of cut of 6.00 mm (0.2362 inches). The C2 grade solid carbide construction provides the hardness and wear resistance required for consistent performance in high-volume production environments. Screw-held mounting ensures secure insert positioning and repeatable edge location during operation.

This insert is suited for external grooving and profiling applications on metalworking lathes in both production shop and job shop environments. It is intended for use with compatible NIKCOLE MINI-SYSTEMS toolholders designed for the GIE insert style. Typical applications include groove turning, face grooving, and light parting on ferrous and non-ferrous materials where tight tolerance and fine surface finish are required. Machinists and CNC operators working in aerospace, automotive, and general precision machining will find this insert appropriate for small-groove work.

Key Features

• Right-hand orientation with SG chip breaker geometry for controlled chip evacuation
• 1.1 mm cutting width (0.0433 inches) for narrow, precise grooves
• Maximum depth of cut of 6.00 mm (0.2362 inches); rated depth-of-cut range 5.00 mm to 10.00 mm
• Solid carbide C2 grade construction for hardness and edge durability
• Screw-held insert mounting for secure, repeatable positioning
• ISO 9001 certified manufacturing for consistent dimensional quality

Compatibility

Designed for use with NIKCOLE MINI-SYSTEMS GIE-style toolholders. Confirm toolholder compatibility with insert style GIE-7-SG-1.1 R before installation. No additional specific model compatibility data was provided by the manufacturer for this insert.

Installation Notes

Installation should be performed by a qualified machinist or CNC tooling technician. Power down and lock out the machine before seating or replacing inserts. Use the appropriate Torx or hex key as specified by the toolholder manufacturer when tightening the clamping screw - do not overtighten. Verify insert seating and edge alignment before resuming cutting operations.
