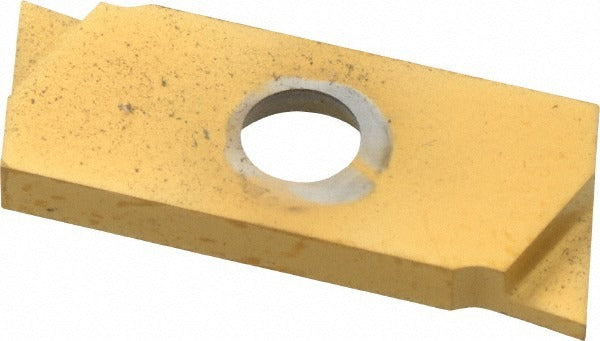

Nikcole Mini-systems GIE7SG0.8L Gold Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG0.8L GOLD is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Built to GIE insert style specifications with an SG chip breaker geometry, this left-hand insert delivers a 0.80 mm cutting width and a maximum depth of cut of 2.54 mm. The TiN coating improves surface hardness and wear resistance, extending tool life in ferrous and non-ferrous machining applications. Material grade C6 makes it suitable for a broad range of workpiece materials under moderate cutting conditions. Screw-clamping holds the insert securely in compatible toolholders during interrupted cuts and high-feed passes.

This insert is used in precision turning operations where tight groove tolerances and consistent chip control are required. It is well suited for small-diameter grooving, undercut profiling, and parting in both production and job-shop environments. The left-hand orientation positions it for specific toolholder configurations and spindle approach directions. Machinists and CNC operators working with Swiss-type machines, gang tooling setups, or conventional turning centers will find this insert applicable to fine-pitch groove work where a narrow cutting width is critical.

Key Features

• Solid carbide construction, material grade C6, for rigidity and wear resistance
• TiN coating for improved surface hardness and extended tool life
• 0.80 mm cutting width for precise, narrow groove profiles
• Maximum depth of cut range of 2.00 to 3.00 mm (0.1000 to 0.1500 inches)
• SG chip breaker geometry for controlled chip evacuation
• Screw-clamping retention for secure seating in compatible toolholders
• ISO 9001 certified manufacturing for consistent dimensional accuracy

Compatibility

Designed for use with GIE-style insert seats in toolholders from the Nikcole Mini-Systems series that accept left-hand grooving inserts with a 17.00 mm overall length and 2.00 mm overall width.

Installation Notes

This insert is installed and replaced by a machinist or CNC tooling technician. Power down and lock out the machine before changing inserts. Use the appropriate torx or hex key for the clamping screw and do not overtighten, as solid carbide inserts are brittle and susceptible to cracking under excessive clamping force. Verify insert seating and toolholder condition before resuming cutting operations.
