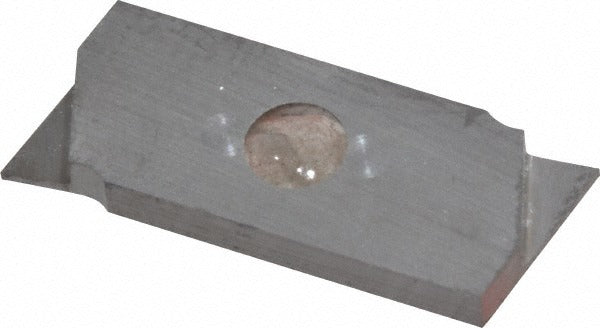

Nikcole Mini-systems GIE7SG0.5R C6 Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG0.5R C6 is a solid carbide grooving insert designed for precision grooving operations on CNC lathes and turning centers. It features a 0.5 mm cutting width and a maximum depth of cut of 2.54 mm, making it well-suited for narrow groove applications where dimensional accuracy is critical. The C6 carbide grade and SG chip breaker geometry support consistent chip control during interrupted or continuous grooving cuts. This insert is configured for right-hand cutting and is held in place by a screw-clamp toolholder. Machinists and CNC programmers in metalworking and precision manufacturing environments are the primary installers and users of this insert.

This insert fits applications requiring tight-tolerance external grooving with minimal cutting width. The 0.5 mm cutting edge is appropriate for groove profiles in small-diameter workpieces or where material removal must be closely controlled. The maximum depth of cut range of 2.00 mm to 3.00 mm supports shallow to moderate groove depths. Right-hand orientation suits standard spindle-forward lathe setups. The GIE insert style is part of the Nikcole Mini-Systems series, which targets miniature and small-part turning applications in precision machining environments.

Key Features

• 0.5 mm cutting width for narrow, precise grooving operations
• Solid carbide construction in C6 grade for wear resistance and edge stability
• SG chip breaker geometry promotes effective chip control during grooving
• Maximum depth of cut of 2.54 mm with a range of 2.00 mm to 3.00 mm
• Screw-clamp holding method for secure, repeatable insert positioning
• ISO 9001 certified manufacturing for consistent dimensional quality

Compatibility

Designed for use with screw-clamp grooving toolholders compatible with the Nikcole Mini-Systems GIE insert style. Verify toolholder seat geometry and insert size code 7SG05 compatibility before installation.

Installation Notes

Installation is performed by machinists or CNC setup technicians. Always power down and lock out the machine before changing inserts. Use the appropriate torx or hex key to seat the clamping screw to the toolholder specification without over-torquing, which can crack the carbide insert. Inspect the insert pocket and seating surface for chips or debris before installing a new insert.
