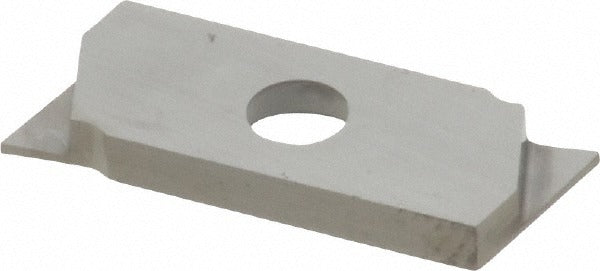

Nikcole Mini-systems GIE7SG0.5R C2 Grooving Insert Solid Carbide

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG0.5R C2 is a solid carbide grooving insert designed for precision grooving and parting operations on CNC lathes and turning centers. It features a 0.5 mm cutting width (0.0197 inches) and a maximum depth of cut of 2.54 mm (0.1000 inches), making it well suited for fine, tight-tolerance groove profiles. The C2 carbide grade provides a balance of wear resistance and edge toughness for general-purpose grooving applications. The SG chip breaker geometry promotes controlled chip evacuation, reducing the risk of chip packing in narrow grooves. This insert is installed by machinists and CNC tooling technicians working in precision machining environments.

This insert is intended for use in screw-clamped toolholders compatible with the GIE insert style within the Nikcole Mini-Systems series. It is suited for right-hand grooving operations on a range of ferrous and non-ferrous workpiece materials in both production and job-shop turning environments. The 7.00 mm cutting height and 17.00 mm overall length fit standard GIE-style pockets designed for this series. Typical applications include external grooving, undercut profiling, and shallow parting cuts where a narrow 0.5 mm kerf is required.

Key Features

• Solid carbide construction in C2 grade for wear resistance in general-purpose grooving
• 0.5 mm cutting width (0.0197 inches) for narrow, precision groove profiles
• Maximum depth of cut of 2.54 mm (0.1000 inches); depth range of 2.00 to 3.00 mm
• SG chip breaker geometry for controlled chip flow in confined groove geometries
• Right-hand insert orientation for standard right-hand turning setups
• Screw-clamped insert holding method for secure, repeatable seating in GIE toolholders
• ISO 9001 certified manufacturing for consistent dimensional tolerances

Compatibility

Designed for use with screw-clamped GIE-style toolholders in the Nikcole Mini-Systems series. Confirm toolholder pocket specifications match the GIE-7-SG-0.5 R insert style before installation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and the toolholder is secured in the turret before seating or removing the insert. Use the appropriate torx or hex key to tighten the clamping screw to the toolholder manufacturer's specified procedure. Inspect the insert pocket for chips or debris before seating the insert to ensure full, flush contact at the seating surfaces.
