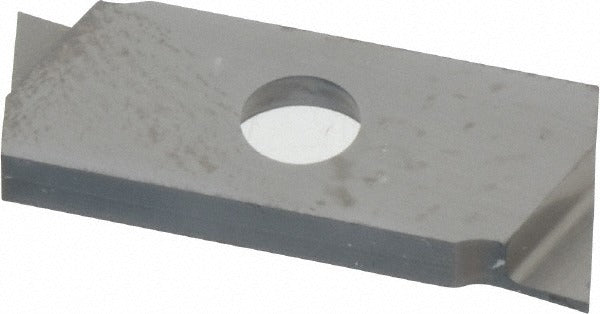

Nikcole Mini-systems GIE7SG0.5LC6 Grooving Insert C6

Product Description

The NIKCOLE MINI-SYSTEMS GIE7SG0.5LC6 is a solid carbide grooving insert designed for precision external grooving and parting operations on CNC lathes and turning centers. Built to the GIE insert style with an SG chip breaker geometry, it features a 0.5 mm cutting width and a maximum depth of cut of 2.54 mm, making it well-suited for tight-tolerance grooving work in small-diameter applications. The C6 carbide grade delivers wear resistance for general-purpose turning in a range of workpiece materials. Screw-held mounting ensures secure seating in compatible toolholders. This insert is intended for use by machinists and toolroom technicians working in production and job-shop environments.

The GIE7SG0.5LC6 is a left-hand insert from the Nikcole Mini-Systems series, optimized for grooving applications where narrow cutting widths and controlled chip evacuation are critical. Its 7.00 mm cutting height and 17.00 mm overall length fit within the Mini-Systems toolholder platform. Typical applications include O-ring groove production, snap-ring recesses, and undercut operations on turned components. This insert is sold individually with a minimum order quantity of 10 units.

Key Features

• 0.5 mm cutting width for narrow, precision grooving operations
• Maximum depth of cut of 2.54 mm, with a depth range of 2.00 to 3.00 mm
• Solid carbide C6 grade for wear resistance in general-purpose turning
• SG chip breaker geometry for controlled chip formation
• Left-hand cutting orientation for dedicated toolholder configurations
• Screw-held insert mounting for positive, repeatable seating
• ISO 9001 certified manufacturing

Compatibility

Designed for use with Nikcole Mini-Systems series toolholders that accept the GIE insert style with screw-held clamping.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered off and the spindle locked before insert replacement. Use the correct torx or hex key specified by the toolholder manufacturer to achieve proper clamping torque without damaging the insert seat. Inspect the pocket and clamping screw for wear or debris before seating the insert. Verify insert orientation for left-hand designation before engaging the workpiece.
