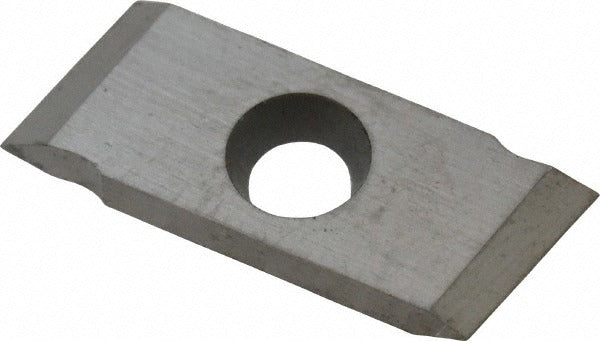

Nikcole Mini-systems GIE7GW55L C2 Threading Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GW55L C2 is a carbide threading insert from the Mini System series, designed for precision thread cutting on both internal and external thread forms. Built to a C2 carbide grade, this insert delivers consistent cutting performance on a range of common engineering materials. It features a left-hand orientation and a 55-degree included angle, making it suited to Whitworth, BSP, and related thread profiles. At 0.0780 inches thick with a maximum corner radius of 0.0050 inches, it is a compact, high-tolerance insert for small-to-medium threading operations on CNC lathes and manual threading equipment.

The GIE7GW55L C2 is intended for use in machining environments where consistent thread geometry and insert repeatability are priorities. The GIE insert style and Mini System series designation indicate compatibility with NIKCOLE Mini System toolholders and threading bars. This insert is applicable to both internal threading of bores and external threading of shafts and fastener stock. It is a suitable choice for production machining shops, tool rooms, and maintenance machining operations working with 55-degree thread standards. Package quantity is 1 insert; minimum order quantity is 10 units.

Key Features

• C2 carbide grade for durable, consistent thread cutting performance
• Left-hand insert orientation for left-hand thread applications
• 55-degree included angle compatible with Whitworth and BSP thread forms
• Handles both internal and external threading operations
• Compact geometry: 0.0780 inches thick with 0.0050 inch maximum corner radius
• Part of the NIKCOLE Mini System series for direct toolholder compatibility

Compatibility

Designed for use with NIKCOLE Mini System series threading toolholders and boring bars that accept GIE-style inserts. Verify toolholder insert pocket specifications before installation.

Installation Notes

Threading inserts of this type are installed and replaced by machinists or tooling technicians on CNC or manual lathes. Power down and lock out the machine before changing inserts. Use the appropriate torque wrench and insert screw specified by the toolholder manufacturer - do not overtighten the clamping screw, as this can fracture carbide. Confirm insert seating and runout before resuming cutting operations.
