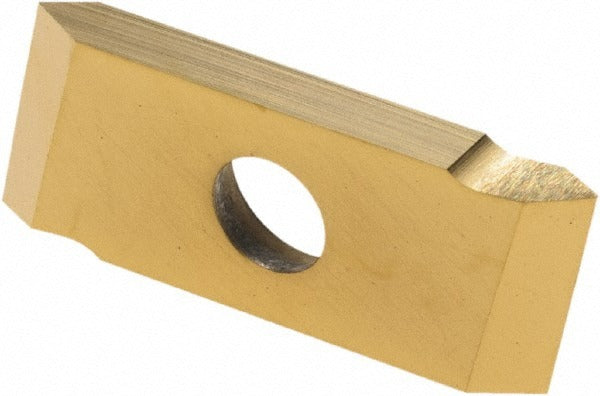

Nikcole Mini-systems GIE7GW 60RGOLD Carbide Threading Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GW 60RGOLD is a carbide threading insert designed for external thread cutting in the Mini System series. This right-hand insert features a 60-degree included angle and a PVD-applied Titanium Nitride finish coating, which improves surface hardness and extends cutting life in production threading applications. Built to C6 carbide grade, it delivers consistent thread geometry on external profiles across a range of workpiece materials. Machinists and toolroom technicians use this insert in CNC lathes and manual threading setups where precision thread form and tool longevity are priorities.

This insert is intended for external threading operations in industrial machining environments. The GIE-style insert seats into compatible NIKCOLE Mini System toolholders configured for right-hand cutting. It is suited for producing 60-degree thread forms commonly associated with Unified (UN), metric (M), and similar external thread standards. Typical applications include threading on turned components in job shop, production, and maintenance repair operations where consistent insert geometry and repeatable thread quality are required.

Key Features

• C6 carbide grade construction for wear resistance in threading applications
• PVD Titanium Nitride finish coating extends tool life and reduces built-up edge
• 60-degree included angle covers Unified, metric, and similar external thread forms
• Right-hand cutting orientation for standard external threading setups
• Corner radius range of 0.01 mm to 0.12 mm for controlled thread root geometry
• GIE insert style sized for NIKCOLE Mini System compatible toolholders

Compatibility

Designed for use with NIKCOLE Mini System series toolholders configured for GIE-style external threading inserts in right-hand orientation.

Installation Notes

Installation is performed by qualified machinists or toolroom technicians. Power down and lock out the machine spindle before seating or removing the insert. Ensure the insert pocket is clean and free of chips before seating to maintain proper thread geometry. Do not exceed the toolholder manufacturer's recommended cutting parameters for this insert style and grade.
