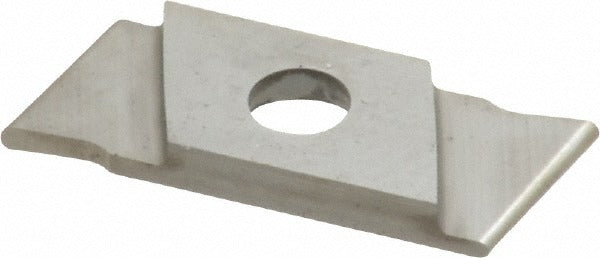

Nikcole Mini-systems GIE7GR1.0 R C2 Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GR1.0 R C2 is a solid carbide grooving insert designed for precision external grooving and turning operations on CNC lathes and turning centers. Manufactured to the GIE insert style with a C2 carbide grade, it delivers a cutting width of 1.00 mm (0.0394 inches) and a maximum depth of cut of 6.00 mm (0.2362 inches). The full-radius geometry with a 0.50 mm (0.0197 inches) corner radius promotes smooth chip flow and consistent groove profiles. This insert is held in place by a screw-clamp method and is intended for use by machinists and toolroom technicians in production and job-shop environments.

This grooving insert is suited for residential and industrial machining applications where tight-tolerance grooves are required in metal workpieces. It is a right-hand insert intended for use on compatible GIE-style toolholders within the Nikcole Mini-Systems series. Typical applications include external grooving, parting, and profile turning where controlled chip formation and consistent groove width are critical. The GR chip breaker geometry is optimized for these operations.

Key Features

• Solid carbide construction with C2 material grade for wear resistance and edge stability
• 1.00 mm cutting width with full-radius geometry and 0.50 mm corner radius
• Maximum depth of cut of 6.00 mm; effective depth-of-cut range of 5.00 mm to 10.00 mm
• Right-hand orientation with GIE insert style and GR chip breaker
• Screw-holding method for secure, repeatable seating in compatible toolholders
• Manufactured under ISO 9001 quality standards

Compatibility

Designed for use with GIE-style screw-clamp toolholders in the Nikcole Mini-Systems series. Verify toolholder compatibility using insert style GIE-7-GR-1.0 R as the reference designation before installation.

Installation Notes

Insert installation and replacement should be performed by a qualified machinist or toolroom technician. Power down and lock out the machine spindle before removing or seating any cutting insert. Use the correct torx or hex key as specified by the toolholder manufacturer when tightening the clamping screw - do not overtighten. Inspect the insert pocket and seating surface for debris before installing a new insert to ensure accurate positioning.
