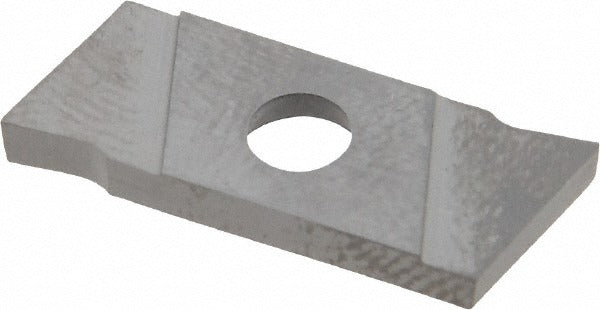

Nikcole Mini-systems GIE7GP2.0R R C2 Cutoff Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP2.0R R C2 is a solid carbide cutoff and grooving insert designed for precision parting and groove operations on CNC lathes and turning centers. Built to the GIE insert style with a GP chipbreaker geometry, this insert delivers a 2.00 mm (0.0787 inch) cutting width and a 7-degree right-hand lead angle. The C2 material grade coated carbide construction is suited for high-volume production runs on non-ferrous metals, offering consistent edge life and repeatable cut quality. It is installed by machinists and CNC operators working in production turning and precision parts manufacturing environments.

This insert is intended for cut-off and grooving applications on non-ferrous workpiece materials. The right-hand lead angle and right-hand insert orientation make it compatible with standard right-hand turning setups. With a maximum depth of cut of 6.00 mm (0.2362 inches) and an overall cutting height of 7.00 mm (0.2756 inches), it suits typical bar-parting and groove-profiling operations on small to medium diameter stock. The multi-use designation allows it to serve in both cutoff and grooving functions within the same toolholder system, reducing insert changeover time on the machine.

Key Features

• Solid carbide C2 grade construction with coated finish for extended wear resistance on non-ferrous materials
• 2.00 mm cutting width (0.0787 inches) for precise, narrow parting and grooving cuts
• GP chipbreaker geometry promotes efficient chip evacuation during cut-off operations
• 7-degree right-hand lead angle reduces cutting forces and improves surface finish on the parted face
• Maximum depth of cut of 6.00 mm (0.2362 inches) supports bar stock and sleeve parting applications
• Multi-use capability covers both cut-off and grooving operations with a single insert style
• ISO 9001 certified manufacturing for consistent dimensional and performance standards

Compatibility

Designed for use in toolholders and blade systems within the Nikcole Mini-Systems series that accept GIE style inserts with a 2 mm cutting width and right-hand orientation. Verify toolholder seat specifications before installation.

Installation Notes

Installation is performed by qualified machinists or CNC setup technicians. Power down and lock out the machine spindle before seating or removing any insert. Ensure the toolholder seat is clean and free of chips or debris before clamping the insert. Do not exceed the maximum depth of cut specification for the insert, as overloading can cause premature edge failure or insert fracture.
