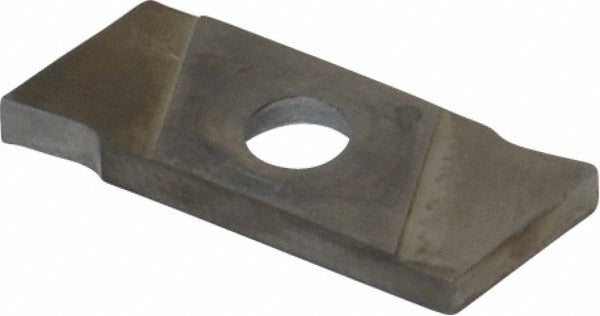

Nikcole Mini-systems GIE7GP2.0R N C2 Cutoff Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP2.0R N C2 is a solid carbide cutoff and grooving insert designed for precision parting and groove operations on CNC lathes and turning centers. It carries a 2 mm (0.0787 inches) cutting width, a neutral lead angle, and a right-hand orientation, making it suitable for straight plunge cuts without lateral cutting force bias. The C2 carbide grade and coated finish provide wear resistance across a range of turning applications. The GP chipbreaker geometry promotes chip control during cut-off and grooving passes. This insert is installed by machinists and toolroom technicians working with compatible GIE-series toolholders.

This insert is used in cut-off and grooving operations on non-ferrous metal workpieces, including aluminum, brass, copper, and similar materials. It fits into the GIE 7 insert style toolholder platform within the Nikcole Mini-Systems series. Typical applications include production turning on CNC lathes where consistent groove width and clean parting cuts are required. The neutral lead angle suits direct radial plunge cuts, and the multi-use designation allows it to serve both grooving and cutoff functions in a single setup.

Key Features

• Solid carbide construction with coated finish for extended tool life on non-ferrous metals
• 2 mm cutting width (0.0787 inches) for precise groove and parting dimensions
• Neutral lead angle with right-hand orientation for straight radial plunge cuts
• GP chipbreaker geometry promotes controlled chip evacuation during grooving and cut-off
• Maximum depth of cut 6 mm (0.2362 inches) supports a range of groove depth requirements
• Multi-use insert rated for both cut-off and grooving operations
• ISO 9001 certified manufacturing

Compatibility

Designed for use with GIE 7 series toolholders in the Nikcole Mini-Systems platform. Primary workpiece material is non-ferrous metal. The MSC/Manufacturer reference number for this insert is GIE-7-GP-2.0 R-N.

Installation Notes

Insert seating and clamping should be performed with the machine spindle fully stopped and all power isolated per shop lockout/tagout procedures. Use the correct GIE-series toolholder and clamping screw torque per the toolholder manufacturer specifications. Inspect the insert pocket for chips or debris before seating the insert to ensure proper contact and dimensional accuracy. Minimum order quantity for this insert is 10 pieces.
