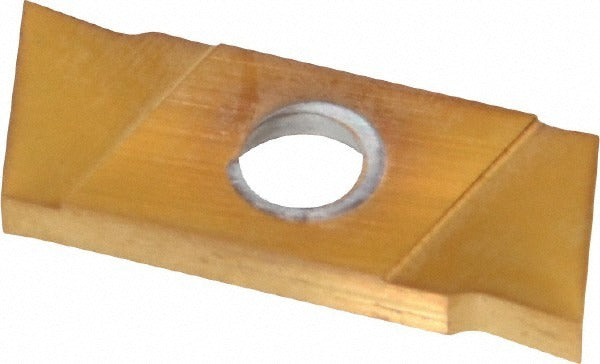

Nikcole Mini-systems GIE7GP2.0LNGOLD Cutoff Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP2.0LNGOLD is a solid carbide cutoff and grooving insert designed for precision parting and groove-cutting operations on CNC lathes and turning centers. It features a 2.00 mm cutting width, a neutral lead angle, and a GP chipbreaker geometry suited for general-purpose material removal. The insert carries a PVD coating and is manufactured to a C6 material grade, making it appropriate for a range of workpiece materials encountered in production turning. At 17.00 mm overall length and 7.00 mm cutting height, it fits compact toolholding systems where space and accuracy both matter. Installation and setup are handled by machinists and CNC turning technicians.

This insert is built for cut-off and grooving applications in production and job-shop turning environments. The left-hand orientation and neutral lead angle suit specific toolholder configurations where insert hand and approach angle are critical to chip flow and surface finish. A maximum depth of cut of 6.00 mm makes it suitable for moderate stock removal in parting and slotting operations. It is a multi-use insert compatible with appropriate GIE-series toolholders within the Nikcole Mini-Systems product line. Typical applications include bar-fed turning operations on medium-to-small diameter workpieces.

Key Features

• Solid carbide construction with PVD coating for wear resistance and edge retention
• 2.00 mm cutting width for precise narrow-groove and cutoff work
• GP chipbreaker geometry for general-purpose chip control across a range of materials
• Neutral lead angle, left-hand insert hand for specific toolholder fitment
• Maximum depth of cut of 6.00 mm suitable for moderate parting and grooving depth
• ISO 9001 certified manufacturing for consistent dimensional and quality standards

Compatibility

Designed for use with GIE-series insert-style toolholders in the Nikcole Mini-Systems product line. Verify toolholder hand, insert pocket dimensions, and clamping style before installation. No additional compatible model numbers are specified in the available product data.

Installation Notes

Insert replacement and indexing should be performed by a qualified machinist or CNC tooling technician with the machine fully stopped and locked out per applicable safety procedures. Use appropriate torque on clamping screws per the toolholder manufacturer specification. Inspect the insert pocket and clamping components for wear or debris before seating a new insert. Verify insert orientation and hand match the toolholder configuration before resuming cuts.
