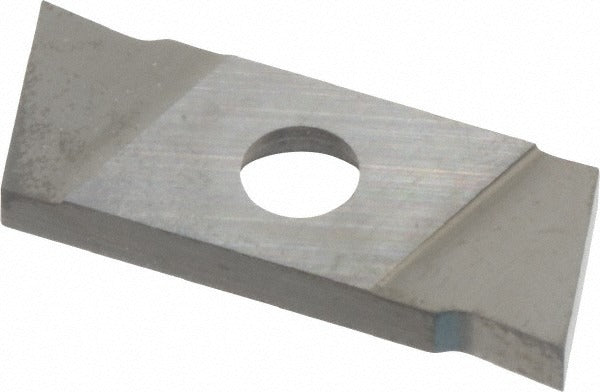

Nikcole Mini-systems GIE7GP2.0L N C2 Carbide Cutoff Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP2.0L N C2 is a solid carbide cutoff and grooving insert designed for precision parting and groove operations on CNC lathes and turning centers. Manufactured to GIE insert style with a GP chipbreaker geometry, it delivers a 2.00 mm (0.0787 inches) cutting width and a neutral lead angle for straight, consistent cuts. The C2 material grade coated carbide construction is optimized for non-ferrous metal workpieces. This insert is a left-hand configuration and is installed by machinists and toolroom technicians in production and job-shop environments.

This insert is suited for cut-off and grooving applications on non-ferrous materials such as aluminum, brass, copper, and similar alloys. The GP chipbreaker promotes chip control during shallow and deep groove passes. With a maximum depth of cut of 6.00 mm (0.2362 inches) and an overall cutting height of 7.00 mm (0.2756 inches), it fits standard GIE-series mini-system toolholders used in both light production and high-precision turning work. The multi-use designation means the insert supports both parting and grooving in a single tool configuration.

Key Features

• Solid carbide C2 grade with coated finish for extended tool life on non-ferrous metals
• 2.00 mm cutting width for narrow, precise parting and grooving cuts
• Neutral lead angle with GP chipbreaker for effective chip evacuation
• Left-hand insert orientation for compatible GIE-series toolholders
• Maximum depth of cut of 6.00 mm (0.2362 inches) supports a wide range of groove depths
• Multi-use design suitable for both cut-off and grooving operations

Compatibility

Designed for use with GIE-series Nikcole Mini-Systems toolholders. Verified compatible with Insert Style GIE, Insert Size Code 2. Confirm toolholder hand and insert size code match before installation.

Installation Notes

Installation should be performed by a qualified machinist with the machine powered off and spindle locked. Use the appropriate torque wrench and insert seating tool specified by the toolholder manufacturer - do not use substitute tools that could damage the insert pocket. Verify insert orientation matches the toolholder hand designation before clamping. Inspect the insert pocket and clamping screw for wear or debris before seating a new insert.
