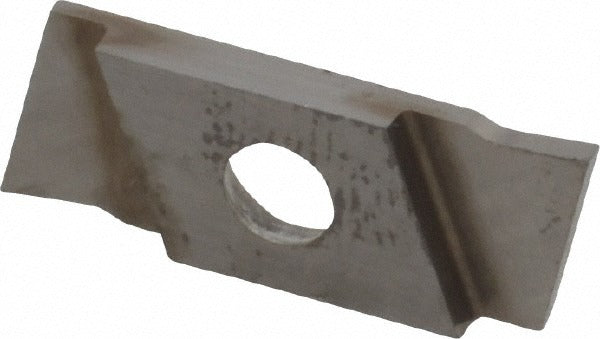

Nikcole Mini-systems GIE7GP1.OR-N C5 Cutoff Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP1.OR-N C5 is a solid carbide cutoff and grooving insert designed for precision parting and groove operations on steel workpieces. It carries a C5 material grade and features a PVD coating for extended wear resistance. The insert has a 1.00 mm (0.0390 inch) cutting width and a neutral lead angle with right-hand orientation, making it suited for straight, chatter-resistant cutoff passes. Licensed machinists and CNC lathe operators install this insert into compatible GIE-series toolholders as part of the Nikcole Mini-Systems platform.

This insert is intended for cut-off and grooving applications on steel in both production and job-shop turning environments. The GP chipbreaker geometry controls chip formation during shallow to moderate-depth grooving. Maximum depth of cut reaches 6.00 mm (0.2362 inches), and the cutting height of 7.00 mm (0.2750 inches) fits standard GIE-7 blade-style holders. It is a multi-use insert suitable for repetitive parting cycles as well as contour grooving passes where a neutral lead angle is required.

Key Features

• Solid carbide construction with C5 grade for hardness and heat resistance on steel
• PVD coating applied for improved surface finish and tool life
• 1.00 mm cutting width for narrow, precise cutoff and grooving
• Neutral lead angle, right-hand orientation for straight radial cuts
• GP chipbreaker geometry supports reliable chip evacuation during grooving
• Maximum depth of cut of 6.00 mm (0.2362 inches)

Compatibility

Designed for use with GIE-7 series blade-style toolholders in the Nikcole Mini-Systems platform. Compatible with cut-off and grooving operations on steel workpieces where a 1.00 mm wide, right-hand neutral insert is specified.

Installation Notes

Installation is performed by a qualified CNC machinist or toolroom technician. Before changing inserts, ensure the machine spindle is fully stopped and all energy is locked out per shop lockout/tagout procedures. Seat the insert fully into the toolholder pocket and confirm secure clamping before resuming cuts. Do not exceed the rated maximum depth of cut of 6.00 mm to avoid insert breakage or workpiece damage.
