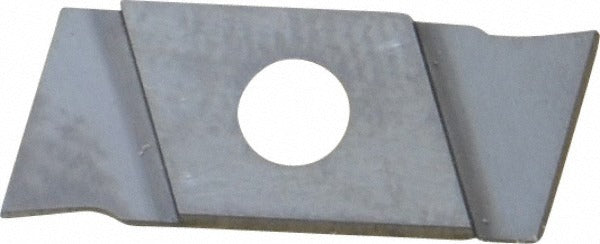

Nikcole Mini-systems GIE7GP1.OR-L C2 Carbide Cutoff Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP1.OR-L C2 is a solid carbide cutoff and grooving insert designed for precision material removal in CNC turning and grooving operations. Built to the GIE insert style with a C2 material grade and GP chipbreaker geometry, this insert delivers a 1.00 mm cutting width with a 7-degree left-hand lead angle and right-hand insert orientation. The coated carbide construction is suited for machining non-ferrous metals, offering consistent edge performance across repeated cuts. Machinists and CNC operators working in production turning environments rely on this insert for clean, repeatable cutoff and grooving results.

This insert is intended for cutoff and grooving applications in CNC lathes and turning centers. It fits within the Nikcole Mini-Systems tooling series and is classified as a multi-use tool capable of handling both cutoff and grooving operations. It is primarily targeted at non-ferrous workpiece materials and is suited for residential shop, job shop, and production floor environments where tight groove tolerances are required. Machinists select this insert when consistent cutting width and controlled chip formation are priorities.

Key Features

• Solid carbide construction with C2 material grade for non-ferrous metal cutting
• 1.00 mm cutting width for precise grooving and cutoff operations
• GP chipbreaker geometry for controlled chip flow
• 7-degree left-hand lead angle with right-hand insert hand orientation
• Coated finish for extended edge life
• Multi-use design compatible with both cutoff and grooving applications
• Manufactured to ISO 9001 standards

Compatibility

Designed as an OEM-style replacement insert for the Nikcole Mini-Systems GIE series toolholders. Compatible with tooling setups specified for GIE-style inserts with a 1.00 mm cutting width and right-hand insert orientation.

Installation Notes

Installation is performed by qualified machinists or CNC tooling technicians. Ensure the machine spindle is fully stopped and the turret is in a safe indexed position before seating or replacing the insert. Use the appropriate torx or hex key as specified by the toolholder manufacturer to secure the insert clamp to the correct clamping torque per the toolholder documentation. Verify cutting width and lead angle orientation match the toolholder designation before beginning any cutting operation.
