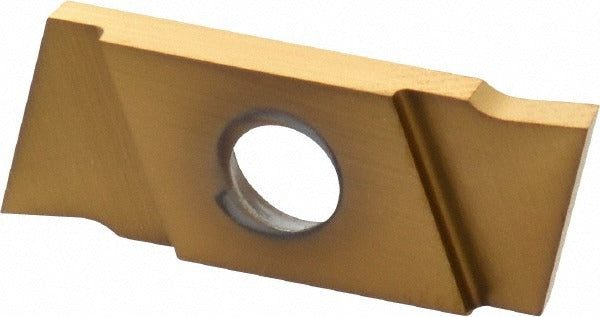

Nikcole Mini-systems GIE7GP1.5RRGOLD Cutoff Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP1.5RRGOLD is a solid carbide cutoff and grooving insert designed for precision parting and groove operations on CNC lathes and turning centers. It features a 1.5 mm cutting width, a 7-degree right-hand lead angle, and a GP chipbreaker geometry. The insert is PVD coated to C6 material grade, providing wear resistance and thermal stability in demanding cutting applications. At 0.1 pounds, it ships individually but requires a minimum order of 10 units. Machinists and toolroom technicians use this insert where consistent chip control and accurate groove width are critical.

This insert is suited for cut-off and grooving operations in production and job-shop turning environments, both light and moderate-duty. The GIE insert style fits Nikcole Mini-Systems toolholders designed for the GIE series. Right-hand lead angle orientation makes it compatible with standard right-hand turning setups. The GP chipbreaker geometry handles a range of workpiece materials where positive cutting action and chip evacuation are priorities. It is a multi-use insert applicable across cut-off and grooving applications on ferrous and non-ferrous materials.

Key Features

• 1.5 mm cutting width with 0.0591 inch decimal equivalent for precise groove sizing
• Solid carbide construction with PVD coating for extended tool life
• 7-degree right-hand lead angle with GP chipbreaker geometry
• Maximum depth of cut 6.00 mm (0.2362 inches)
• ISO 9001 certified manufacturing
• Multi-use design supports both cut-off and grooving operations

Compatibility

Designed for use with Nikcole Mini-Systems GIE series toolholders configured for right-hand lead angle inserts. Verify toolholder pocket specifications against GIE insert style dimensions before installation.

Installation Notes

Insert seating and clamping should be performed by a qualified machinist following the toolholder manufacturer's recommended clamping torque and procedure. Always power down and lock out the machine spindle before changing inserts. Inspect the toolholder pocket for wear, debris, or damage prior to seating a new insert. Do not exceed the maximum depth of cut rating for this insert style.
