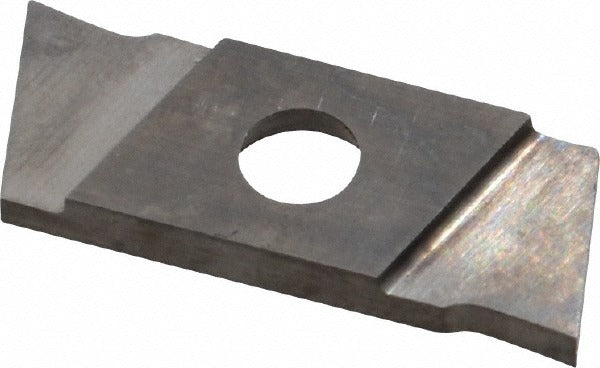

Nikcole Mini-systems GIE7GP1.5L N C2 Cutoff Grooving Insert

Product Description

The NIKCOLE MINI-SYSTEMS GIE7GP1.5L N C2 is a solid carbide cutoff and grooving insert designed for precision parting and groove operations on CNC lathes and turning centers. Built to GIE insert style geometry with a GP chipbreaker, it delivers a 1.5 mm (0.0591 inch) cutting width and a neutral lead angle for straight, controlled cuts. The C2 carbide grade with a coated finish provides wear resistance suited to non-ferrous metal workpieces. Machinists and toolroom operators use this insert where consistent cut-off performance and repeatable groove geometry are required.

This insert is intended for cut-off and grooving applications on non-ferrous metals in production turning environments. The left-hand orientation and neutral lead angle make it compatible with standard GIE-series toolholders from the Nikcole Mini-Systems line. It suits both light production runs and repetitive parting operations where insert changeover speed and dimensional consistency matter. The GP chipbreaker geometry supports reliable chip control in softer, ductile materials commonly encountered in non-ferrous machining.

Key Features

• 1.5 mm (0.0591 inch) cutting width for narrow parting and grooving cuts
• Solid carbide C2 grade with coated finish for wear resistance on non-ferrous metals
• GP chipbreaker for effective chip control in ductile workpiece materials
• Neutral lead angle, left-hand insert hand for straight radial cut-off
• Maximum depth of cut: 6.00 mm (0.2362 inch)
• Multi-use design suitable for both cut-off and external grooving operations

Compatibility

Designed for use with GIE-series toolholders in the Nikcole Mini-Systems platform. Compatible primary workpiece material is non-ferrous metal. Refer to Nikcole Mini-Systems toolholder selection charts to confirm holder compatibility before installation.

Installation Notes

Installation should be performed by a qualified machinist or toolroom technician with the machine in a powered-down, locked-out state. Ensure the insert seats fully and evenly in the toolholder pocket before clamping. Inspect the insert pocket and clamping mechanism for debris or wear prior to seating a new insert. Follow the toolholder manufacturer torque guidance for clamping screws and verify insert security before resuming cutting operations.
